ST60X Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER SMD 18POS 1MM
| Part | Insulation Material | Number of Rows | Connector Type | Current Rating (Amps) | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Positions Loaded | Material Flammability Rating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Insulation Height | Insulation Height | Contact Material | Style | Contact Type | Voltage Rating | Termination | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

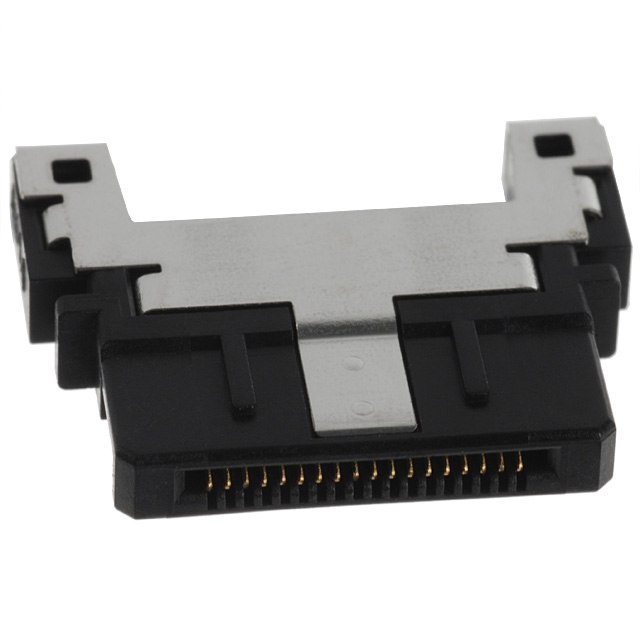

 Hirose Electric Co Ltd | Nylon Polyamide (PA) | 1 | Cradle Plug | 0.5 A | Gold | 1 mm | 0.039 in | 0.76 Ám | 30 Áin | Surface Mount | All | UL94 V-0 | Latch Holder | 80 °C | -30 ░C | Board Guide Mounting Flange Shielded | 9.6 mm | 0.378 in | Copper Alloy | Board to Cable/Wire | Non-Gendered | 100 V | Solder | Black | 18 |

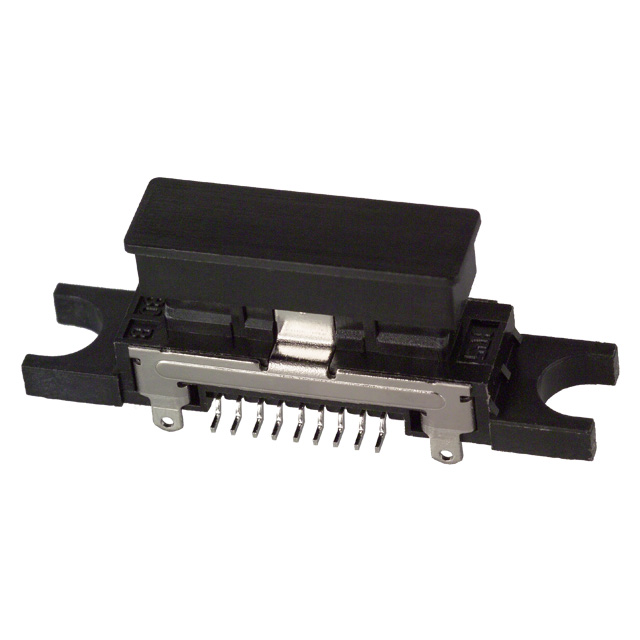

 Hirose Electric Co Ltd | Nylon 9T Polyamide (PA9T) | 1 | Cradle Plug | 0.5 A | Gold | 0.5 mm | 0.02 in | Right Angle Surface Mount | All | UL94 V-0 | Latch Holder | 80 °C | -30 ░C | Board Guide Mounting Flange Shielded | 2.95 mm | 0.116 " | Copper Alloy | Board to Cable/Wire | Non-Gendered | 100 V | Solder | Black | 18 | ||
Hirose Electric Co Ltd | Nylon Polyamide (PA) | 1 | Cradle Plug | 0.5 A | Gold | 1 mm | 0.039 in | Surface Mount | All | UL94 V-0 | Latch Holder | 80 °C | -30 ░C | Board Guide Mounting Flange Shielded | 9.6 mm | 0.378 in | Copper Alloy | Board to Cable/Wire | Non-Gendered | 100 V | Solder | Black | 18 | ||

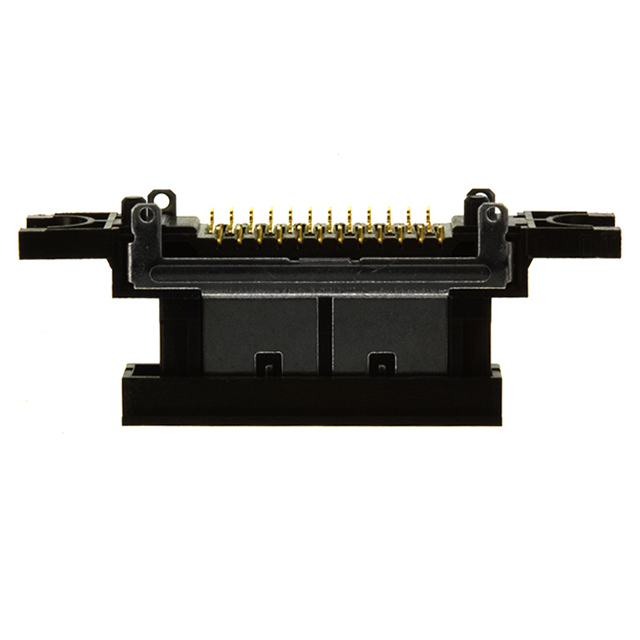

 Hirose Electric Co Ltd | Nylon Polyamide (PA) | 1 | Cradle Plug | 0.5 A | Gold | 1 mm | 0.039 in | 0.76 Ám | 30 Áin | Surface Mount | All | UL94 V-0 | Latch Holder | 80 °C | -30 ░C | Board Guide Mounting Flange Shielded | 9.6 mm | 0.378 in | Copper Alloy | Board to Cable/Wire | Non-Gendered | 100 V | Solder | Black | 24 |
