H2.4 Series

RF Connectors / Coaxial Connectors

Manufacturer: Hirose Electric Co Ltd

Catalog

RF Connectors / Coaxial Connectors

Catalog

RF Connectors / Coaxial Connectors

Part	Center Contact Plating	Body Material	Includes	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Impedance	Frequency - Max [Max]	Mounting Type	Housing Color	Contact Termination	Fastening Type	Shield Termination	Number of Ports	Connector Type	Connector Style [x]	Connector Style	Connector Style	Features	Center Contact Material	Body Finish	Frequency Range [Max]	Frequency Range [Min]	Package / Case	Attenuation Value	Power (Watts)

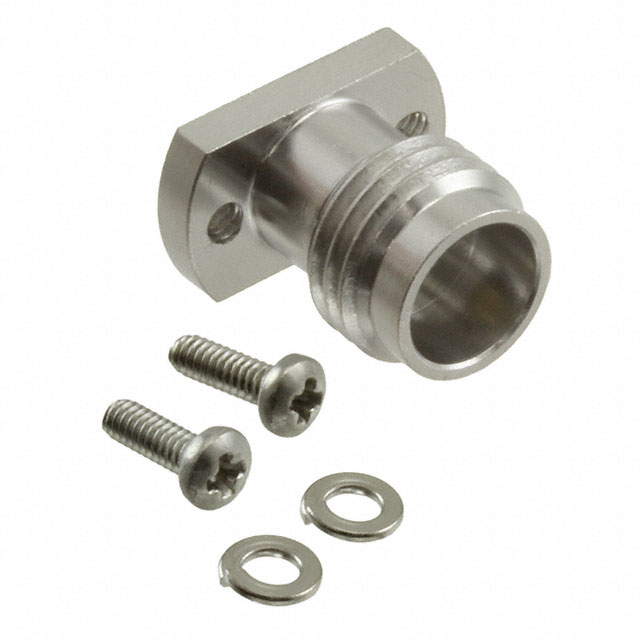

Hirose Electric Co Ltd H2.4-R-SR2(11)	Gold	Stainless Steel	1 Connector 2 Screws 2 Spring Washers	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper

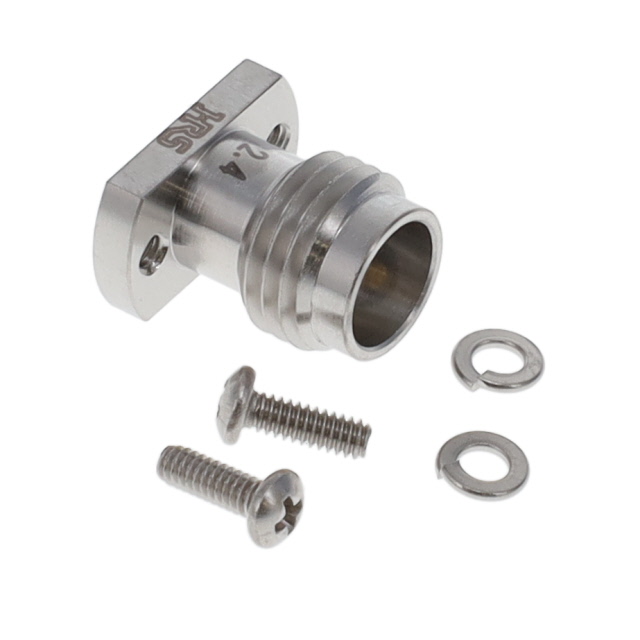

Hirose Electric Co Ltd H2.4-R-SR2-1(12)	Gold	Stainless Steel	1 Connector 2 Screws 2 Spring Washers	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper

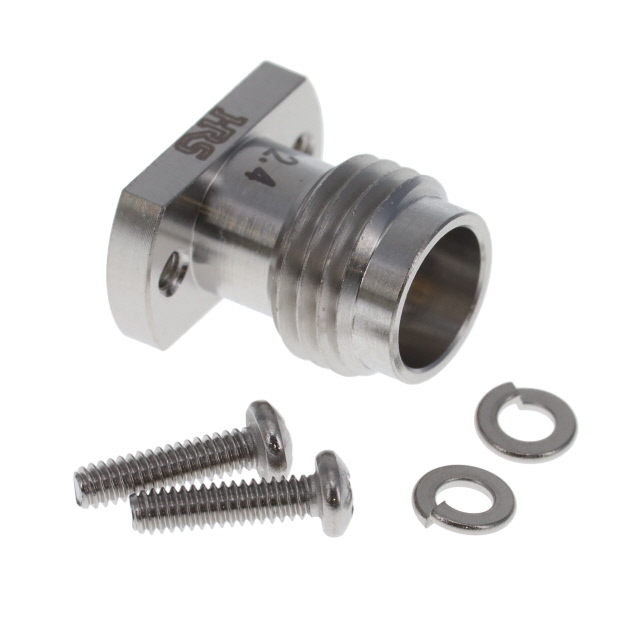

Hirose Electric Co Ltd H2.4-R-SR2-1(11)	Gold	Stainless Steel	1 Connector 2 Screws 2 Spring Washers	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper

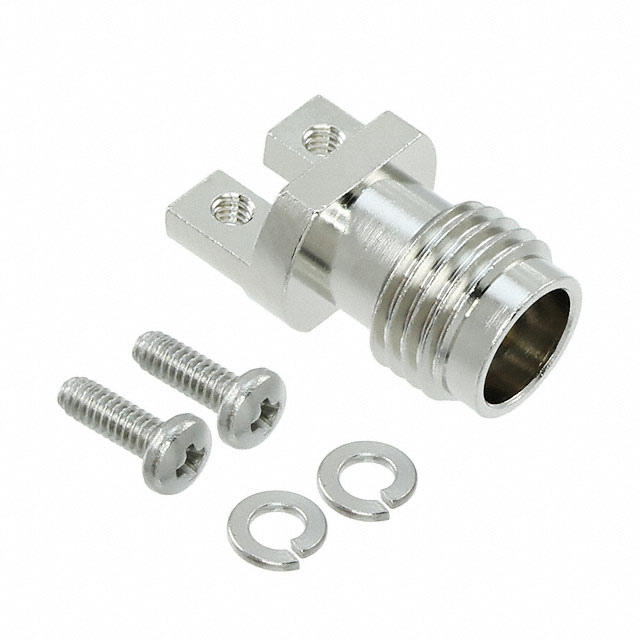

Hirose Electric Co Ltd H2.4-LR-SR2(11)	Gold	Brass	1 Connector 2 Screws 2 Spring Washers	Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C		50 Ohms	50 GHz	Board Edge End Launch	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper	Nickel
Hirose Electric Co Ltd H2.4-R-SR2-SA	Gold	Brass		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	500	-55 C	125 °C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4		Beryllium Copper	Nickel

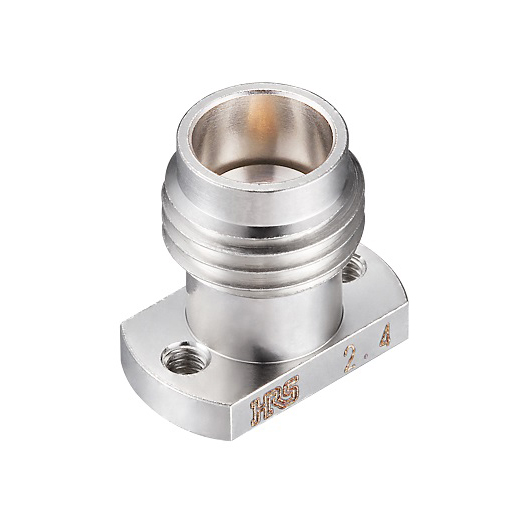

Hirose Electric Co Ltd H2.4-R-SR2-SA(15)	Gold	Brass		Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	500	-55 C	125 °C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper	Nickel

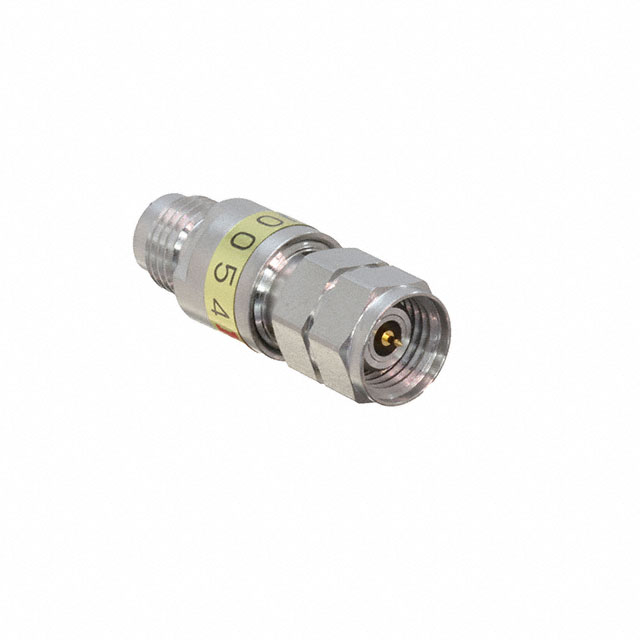

Hirose Electric Co Ltd H2.4-AT(10)-PJ									50 Ohms															50 GHz	0 Hz	2.4mm In-Line Module	10 dB	1 W
Hirose Electric Co Ltd H2.4-R-SR2-1(21)	Gold	Stainless Steel		Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4	Mounting Hardware	Beryllium Copper
Hirose Electric Co Ltd H2.4-AT(8)-PJ									50 Ohms															50 GHz	0 Hz	2.4mm In-Line Module	8 dB	1 W

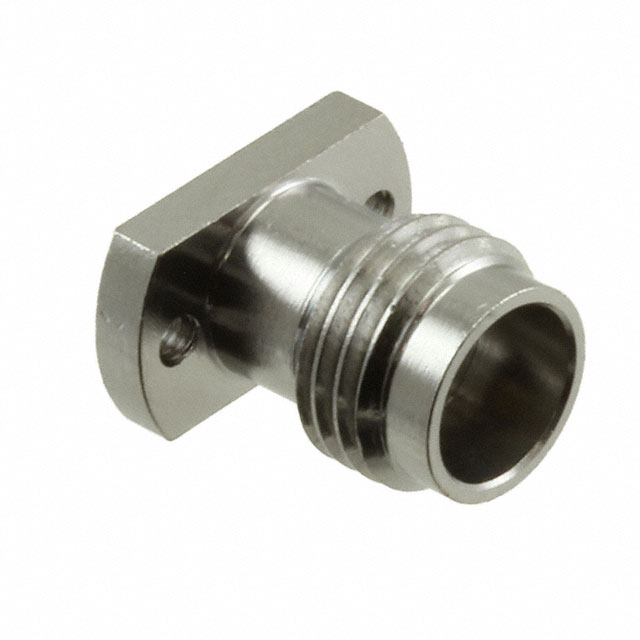

Hirose Electric Co Ltd H2.4-R-SR2	Gold	Stainless Steel		Polytetrafluoroethylene (PTFE)	500	-55 C	105 ░C	Flange	50 Ohms	50 GHz	Surface Mount	Silver	Compression	Threaded	Screw	1	Receptacle Female Socket	2.4 mm	OS-50	APC-2.4		Beryllium Copper
