TK7S10 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

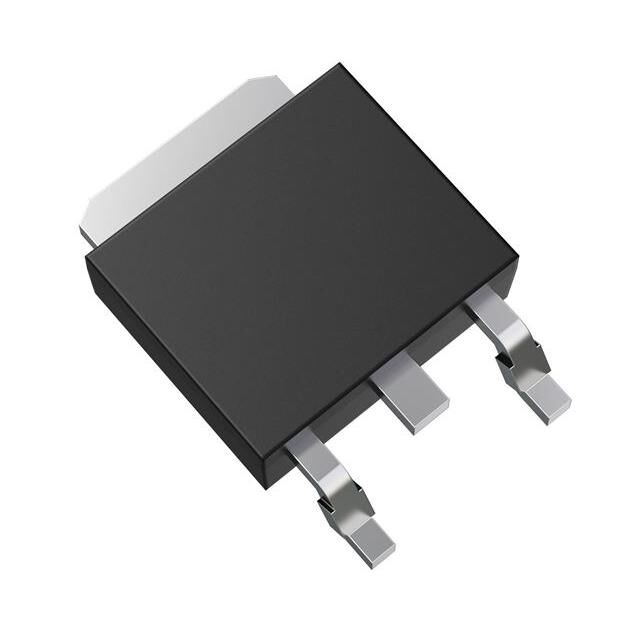

12V - 300V MOSFETS, N-CH MOSFET, 100 V, 7.0 A, 0.048 Ω@10V, DPAK+
| Part | Rds On (Max) @ Id, Vgs | Package / Case | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Mounting Type | Vgs (Max) | Current - Continuous Drain (Id) @ 25°C | Grade | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | FET Type | Qualification | Technology | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 48 mOhm | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 470 pF | 100 V | 4 V | Surface Mount | 20 V | 7 A | Automotive | 50 W | 7.1 nC | N-Channel | AEC-Q101 | MOSFET (Metal Oxide) | 10 V | 175 °C | DPAK+ |
Toshiba Semiconductor and Storage | 48 mOhm | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 470 pF | 100 V | 4 V | Surface Mount | 20 V | 7 A | Automotive | 50 W | 7.1 nC | N-Channel | AEC-Q101 | MOSFET (Metal Oxide) | 10 V | 175 °C | DPAK+ |
