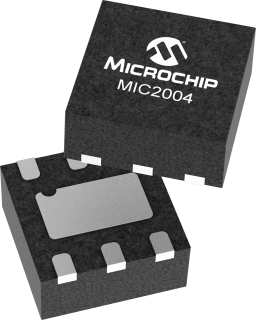

MIC2004 Series

Catalog

IC PWR SWITCH P-CHAN 1:1 SOT23-5

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Package / Case	Input Type	Output Type	Interface	Rds On (Typ)	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Fault Protection	Supplier Device Package	Ratio - Input:Output [custom]	Switch Type
Microchip Technology MIC2004-0.8YM5TX	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	800 mA	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
Microchip Technology MIC2004-0.5YM5-TR	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	500 mA	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
Microchip Technology MIC2004-1.2YM5	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	1.2 A	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
Microchip Technology MIC2004-1.2YM5TX	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	1.2 A	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
Microchip Technology MIC2004-1.2YM5-TR	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	1.2 A	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
Microchip Technology MIC2004-0.8YM5	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	800 mA	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose

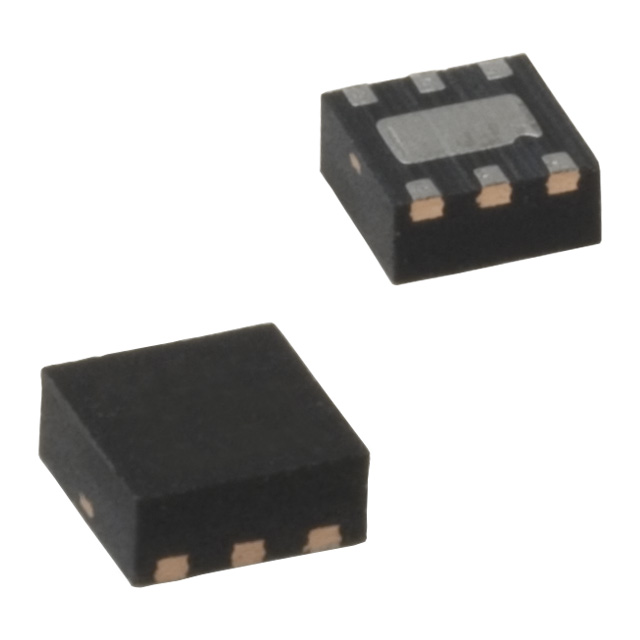

Microchip Technology MIC2004-0.5YML-TR	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	6-MLF® 6-VDFN Exposed Pad	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	500 mA	1	Current Limiting (Fixed) Over Temperature	6-DFN (2x2)	1:1	General Purpose
Microchip Technology MIC2004-1.2YML-TR	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	6-MLF® 6-VDFN Exposed Pad	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	1.2 A	1	Current Limiting (Fixed) Over Temperature	6-DFN (2x2)	1:1	General Purpose
Microchip Technology MIC2004-0.5YM5TX	Load Discharge	85 °C	-40 °C	2.5 V	5.5 V	High Side	SC-74A SOT-753	Non-Inverting	P-Channel	On/Off	70 mOhm	Surface Mount	500 mA	1	Current Limiting (Fixed) Over Temperature	SOT-23-5	1:1	General Purpose
