HIF3MAW Series

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Pitch - Mating	Pitch - Mating	Number of Positions [custom]	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Termination	Contact Finish - Post	Features	Connector Type	Shrouding	Material Flammability Rating	Style	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Type	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Shape	Insulation Material	Voltage Rating	Number of Rows [custom]	Insulation Height	Insulation Height	Number of Positions	Pitch	Pitch	Cable Termination	Color	Row Spacing	Row Spacing	Wire Gauge	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd HIF3MAW-34PA-2.54DSA(63)	78.7 µin	2 µm	0.1 "	2.54 mm	34	0.13 "	3.3 mm	-55 C	85 °C	All	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Through Hole	Solder	Tin	Keying Slot	Header	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	Gold	6 mm	0.236 in	Brass	Male Pin	0.701 in	17.8 mm	Black	5.9 µin	0.15 µm	Square	Polybutylene Terephthalate (PBT)	200 VAC	2
Hirose Electric Co Ltd HIF3MAW-64PA-2.54DS	78.7 µin	2 µm	0.1 "	2.54 mm		0.118 in	3 mm	-55 C	85 °C	All	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Right Angle Through Hole	Solder	Tin		Header	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	Gold	6 mm	0.236 in	Brass	Male Pin			Black	5.9 µin	0.15 µm	Square	Polybutylene Terephthalate (PBT)	200 VAC	2	0.335 "	8.51 mm	64

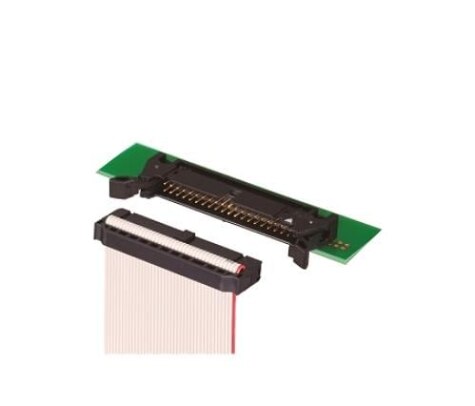

Hirose Electric Co Ltd HIF3MAW-14D-2.54R(63)											Latch Holder			Free Hanging (In-Line)			Feed Through Polarizing Key Strain Relief	Socket								Female Socket									2			14	0.1 "	2.54 mm	IDC	Black	2.54 mm	0.1 "	28 AWG	Ribbon Cable	5.9 µin	0.15 µm	Gold
Hirose Electric Co Ltd HIF3MAW-20PA-2.54DSA	78.7 µin	2 µm	0.1 "	2.54 mm		0.13 "	3.3 mm	-55 C	85 °C	All	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Through Hole	Solder	Tin	Keying Slot	Header	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	Gold	6 mm	0.236 in	Brass	Male Pin	0.701 in	17.8 mm	Black	5.9 µin	0.15 µm	Square	Polybutylene Terephthalate (PBT)	200 VAC	2			20												16.7 mm	0.657 in
Hirose Electric Co Ltd HIF3MAW-30PA-2.54DS(63)	78.7 µin	2 µm	0.1 "	2.54 mm		0.118 in	3 mm	-55 C	85 °C	All	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Right Angle Through Hole	Solder	Tin		Header	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	Gold	6 mm	0.236 in	Brass	Male Pin			Black	5.9 µin	0.15 µm	Square	Polybutylene Terephthalate (PBT)	200 VAC	2	0.335 "	8.51 mm	30
Hirose Electric Co Ltd HIF3MAW-60D-2.54R(63)											Latch Holder			Free Hanging (In-Line)			Feed Through Polarizing Key Strain Relief	Socket								Female Socket									2			60	0.1 "	2.54 mm	IDC	Black	2.54 mm	0.1 "	28 AWG	Ribbon Cable	5.9 µin	0.15 µm	Gold
Hirose Electric Co Ltd HIF3MAW-50PA-2.54DSA	78.7 µin	2 µm	0.1 "	2.54 mm		0.13 "	3.3 mm	-55 C	85 °C	All	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Through Hole	Solder	Tin	Keying Slot	Header	Shrouded - 4 Wall	UL94 V-0	Board to Cable/Wire	Gold	6 mm	0.236 in	Brass	Male Pin	0.701 in	17.8 mm	Black	5.9 µin	0.15 µm	Square	Polybutylene Terephthalate (PBT)	200 VAC	2			50												16.7 mm	0.657 in
Hirose Electric Co Ltd HIF3MAW-16D-2.54R(63)											Latch Holder			Free Hanging (In-Line)			Feed Through Polarizing Key Strain Relief	Socket								Female Socket									2			16	0.1 "	2.54 mm	IDC	Black	2.54 mm	0.1 "	28 AWG	Ribbon Cable	5.9 µin	0.15 µm	Gold

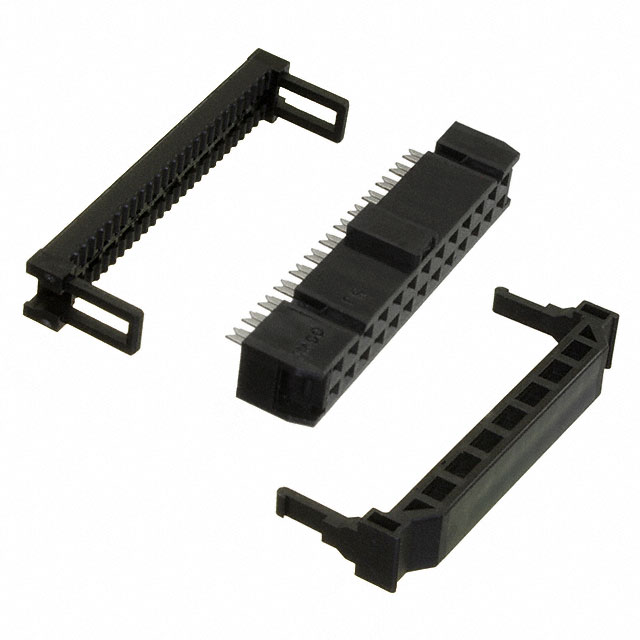

Hirose Electric Co Ltd HIF3MAW-26D-2.54R											Latch Holder			Free Hanging (In-Line)			Feed Through Polarizing Key Strain Relief	Socket								Female Socket									2			26	0.1 "	2.54 mm	IDC	Black	2.54 mm	0.1 "	28 AWG	Ribbon Cable	5.9 µin	0.15 µm	Gold
Hirose Electric Co Ltd HIF3MAW-64D-2.54R											Latch Holder			Free Hanging (In-Line)			Feed Through Polarizing Key Strain Relief	Socket								Female Socket									2			64	0.1 "	2.54 mm	IDC	Black	2.54 mm	0.1 "	28 AWG	Ribbon Cable	5.9 µin	0.15 µm	Gold
