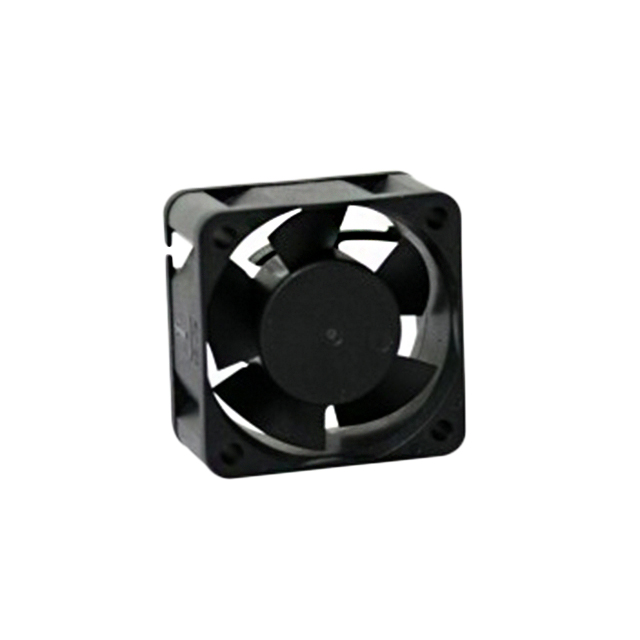

MR4020 Series

Catalog

FAN AXIAL 40X20MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Noise	Voltage - Rated	Weight	Weight	Termination	Static Pressure	Static Pressure	Fan Type	Features	Bearing Type	Width [y]	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	RPM
Mechatronics Fan Group MR4020L12B1-RSR	60 mA	Plastic	Plastic	26.5 dB	12 VDC	24.04 g	0.053 lb	3 Wire Leads	40 Pa	0.16 in H2O	Tubeaxial	Auto Restart Speed Sensor (Tach)	Ball	20 mm	0.263 m³/min	9.4 CFM	40 mm	40 mm	CE cUL TUV UL	6500 RPM
Mechatronics Fan Group MR4020E12B1-RSR	0.22 A	Plastic	Plastic	39.1 dB(A)	12 VDC	24.04 g	0.053 lb	3 Wire Leads	112.1 Pa	0.45 in H2O	Tubeaxial	Auto Restart Speed Sensor (Tach)	Ball	20 mm	0.442 m³/min	15.8 CFM	40 mm	40 mm	CE cUL TUV UL	11000 RPM
Mechatronics Fan Group MR4020H12B-RSR		Plastic	Plastic	35.1 dB(A)	12 VDC	24.04 g	0.053 lb	2 Wire Leads	84.7 Pa	0.34 in H2O	Tubeaxial	Auto Restart	Ball	20 mm	0.381 mł/min	13.6 CFM	40 mm	40 mm	CE cUL TUV UL	9500 RPM
Mechatronics Fan Group MR4020M24B-RSR	50 mA	Plastic	Plastic	29.8 dB(A)	24 VDC	24.04 g	0.053 lb	2 Wire Leads	59.8 Pa	0.24 in H2O	Tubeaxial	Auto Restart	Ball	20 mm	0.322 m³/min	11.5 CFM	40 mm	40 mm	CE cUL TUV UL	8000 RPM
Mechatronics Fan Group MR4020H12B1+6-RSR		Plastic	Plastic	35.1 dB(A)	12 VDC	24.04 g	0.053 lb	4 Wire Leads	84.7 Pa	0.34 in H2O	Tubeaxial	Auto Restart PWM Control Speed Sensor (Tach)	Ball	20 mm	0.381 mł/min	13.6 CFM	40 mm	40 mm	CE cUL TUV UL	9500 RPM
Mechatronics Fan Group MR4020H12B2-RSR		Plastic	Plastic	35.1 dB(A)	12 VDC	24.04 g	0.053 lb	3 Wire Leads	84.7 Pa	0.34 in H2O	Tubeaxial	Auto Restart Locked Rotor Sensor	Ball	20 mm	0.381 mł/min	13.6 CFM	40 mm	40 mm	CE cUL TUV UL	9500 RPM
Mechatronics Fan Group MR4020M12B2-RSR	100 mA	Plastic	Plastic	29.8 dB(A)	12 VDC	24.04 g	0.053 lb	3 Wire Leads	59.8 Pa	0.24 in H2O	Tubeaxial	Auto Restart Locked Rotor Sensor	Ball	20 mm	0.322 m³/min	11.5 CFM	40 mm	40 mm	CE cUL TUV UL	8000 RPM
Mechatronics Fan Group MR4020M24B1-RSR	50 mA	Plastic	Plastic	29.8 dB(A)	24 VDC	24.04 g	0.053 lb	3 Wire Leads	59.8 Pa	0.24 in H2O	Tubeaxial	Auto Restart Speed Sensor (Tach)	Ball	20 mm	0.322 m³/min	11.5 CFM	40 mm	40 mm	CE cUL TUV UL	8000 RPM
Mechatronics Fan Group MR4020H24B2-RSR	800 mA	Plastic	Plastic	35.1 dB(A)	24 VDC	24.04 g	0.053 lb	3 Wire Leads	84.7 Pa	0.34 in H2O	Tubeaxial	Auto Restart Locked Rotor Sensor	Ball	20 mm	0.381 mł/min	13.6 CFM	40 mm	40 mm	CE cUL TUV UL	9500 RPM
Mechatronics Fan Group MR4020H24B-RSR		Plastic	Plastic	35.1 dB(A)	24 VDC	24.04 g	0.053 lb	2 Wire Leads	84.7 Pa	0.34 in H2O	Tubeaxial	Auto Restart	Ball	20 mm	0.381 mł/min	13.6 CFM	40 mm	40 mm	CE cUL TUV UL	9500 RPM
