17240JA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

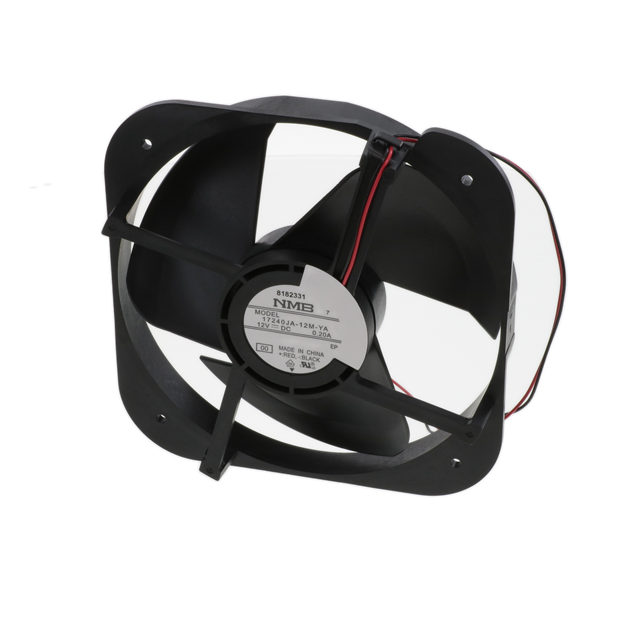

DC AXIAL FAN, 12 V, SQUARE, 172 MM, 40 MM, BALL BEARING, 128.2 CFM
| Part | Material - Frame | Lifetime @ Temp. | Material - Blade | RPM | Static Pressure | Static Pressure | Features | Voltage - Rated | Termination | Power (Watts) | Fan Type | Bearing Type | Weight | Weight | Noise | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Width [x] | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 100000 Hrs | Plastic | 1550 RPM | 29.9 Pa | 0.12 in H2O | Auto Restart | 12 VDC | 2 Wire Leads | 1.92 W | Tubeaxial | Ball | 0.717 lb | 325.22 g | 33.5 dB(A) | Square | 172 mm | 172 mm | 70 °C | -10 °C | 40 mm | 3.59 mł/min | 128.2 CFM |
