AD7171 Series
Manufacturer: Analog Devices
Beta
⌘K

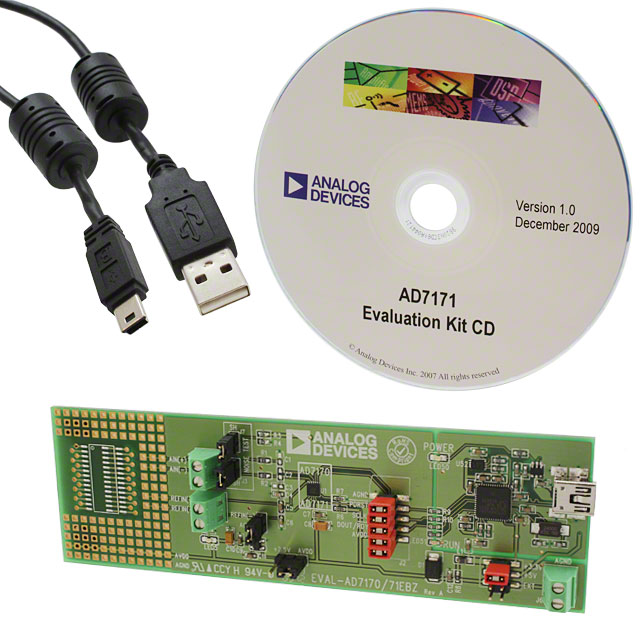

BOARD EVAL FOR AD7171
| Part | Data Interface | Number of A/D Converters | Utilized IC / Part | Supplied Contents | Input Range | Sampling Rate (Per Second) | Number of Bits | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Inputs | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Configuration | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Architecture | Reference Type | Supplier Device Package | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Serial | 1 | AD7171 | Board(s) | ±VREF | 125 Per Second | 16 | ||||||||||||||
 Analog Devices | SPI | 1 | 16 | Surface Mount | -40 °C | 105 ░C | 1 | 5.25 V | 2.7 V | 10-VFDFN Exposed Pad CSP | ADC | 2.7 V | 5.25 V | Sigma-Delta | External | 10-LFCSP-WD (3x3) | Differential | ||||
 Analog Devices | SPI | 1 | 16 | Surface Mount | -40 °C | 105 ░C | 1 | 5.25 V | 2.7 V | 10-VFDFN Exposed Pad CSP | ADC | 2.7 V | 5.25 V | Sigma-Delta | External | 10-LFCSP-WD (3x3) | Differential |
