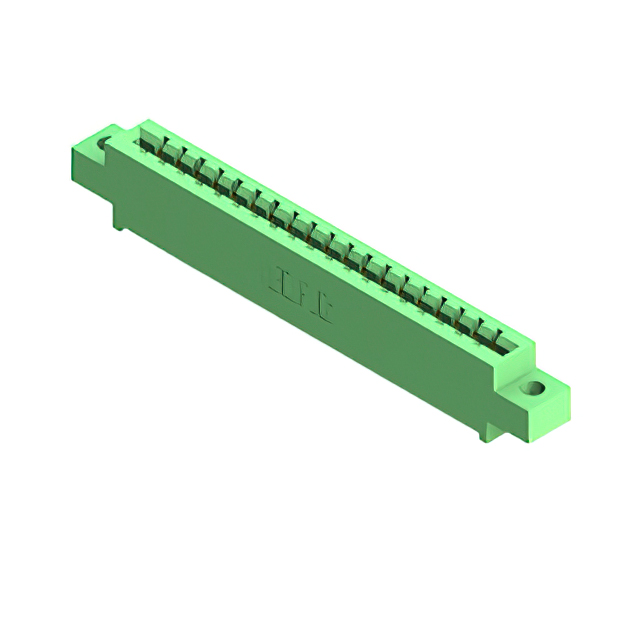

337-019 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
| Part | Termination Rows | Material - Insulation | Number of Positions | Color | Contact Finish | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Termination | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Gender | Read Out | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Right Angle Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Right Angle Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | 0.156 " | 3.96 mm | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Wire Wrap | 3.96 mm | 0.156 in | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 19 | Green | Gold | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Through Hole | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 19 | Female | Single | Copper Alloy |
