AM30K Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 15V 30W

Part	Voltage - Input (Min) [Min]	Type	Efficiency	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Power (Watts)	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Features	Voltage - Output 2	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Current - Output (Max)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]

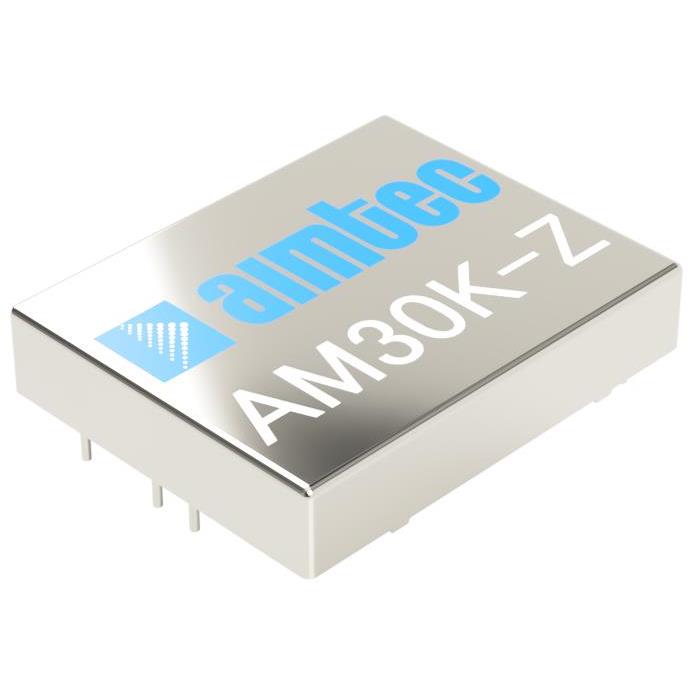

aimtec AM30K-2415SZ	18 V	Isolated Module	91 %	1	CE	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	15 V	-40 °C	85 °C	ITE (Commercial)	Through Hole	30 Watts	7-DIP Module 6 Leads	1.5 kV	2 A
aimtec AM30K-2415DZ	18 V	Isolated Module	91 %	2	CE	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm		-40 C	85 °C	ITE (Commercial)	Through Hole	30 Watts		1.5 kV		Adjustable Output Remote On/Off	-15 V	15 V	-15 V	1 A
aimtec AM30K-2412DZ	18 V	Isolated Module	91 %	2	CE	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm		-40 C	85 °C	ITE (Commercial)	Through Hole	30 Watts		1.5 kV		Adjustable Output Remote On/Off	-12 V			1.25 A	-12 V	12 V
