DIP1524 Series

Catalog

RF DIPLX 1589.655MHZ/2.55GHZ BGA

Part	Package / Case	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Max] [custom]	Mounting Type	High Band Attenuation (min / max dB) [Min]	Type	Return Loss (Low Band / High Band) [custom]	Return Loss (Low Band / High Band) [custom]	Low Band Attenuation (min / max dB) [Min]

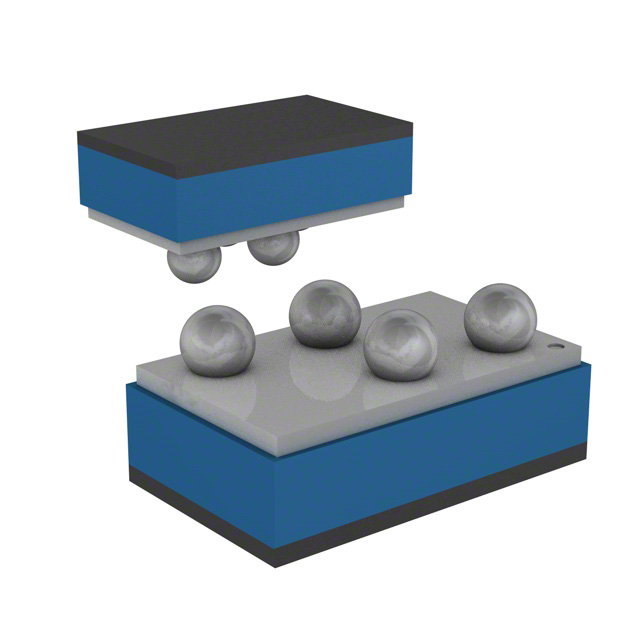

STMicroelectronics DIP1524-01D3	4-UFBGA FCBGA	1573.42 MHz	2.4 GHz	2.7 GHz	1605.89 MHz	Surface Mount	18 dB	Diplexer	20 dB	10 dB	20 dB
