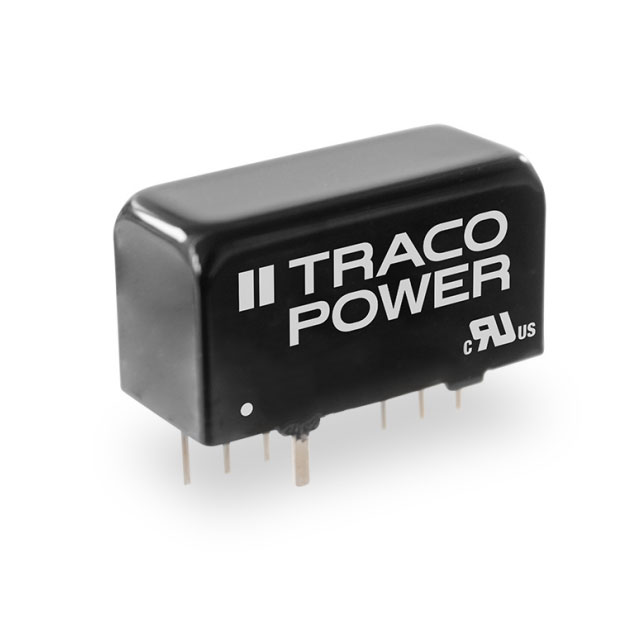

TMR 12WI Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 12W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT METAL CASE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Input (Min) [Min] | Efficiency | Voltage - Output 2 | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Standard Number | Package / Case | Number of Outputs | Features | Voltage - Output 1 | Voltage - Isolation | Voltage - Input (Max) [Max] | Mounting Type | Applications | Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | -40 C | 105 ░C | CB cURus | 4.5 V | 86 % | -5 V | 1.2 A | 12 mm | 0.47 " | 0.38 " | 9.6 mm | 22 mm | 0.87 in | 12 W | 62368-1 | 8-SIP Module 6 Leads | 2 | Remote On/Off | 5 V | 1.6 kV | 18 V | Through Hole | ITE (Commercial) | Isolated Module | |
 Traco Power | -40 C | 105 ░C | CB cURus | 4.5 V | 87 % | 12 mm | 0.47 " | 0.38 " | 9.6 mm | 22 mm | 0.87 in | 9.9 W | 62368-1 | 8-SIP Module 6 Leads | 1 | Remote On/Off | 3.3 V | 1.6 kV | 18 V | Through Hole | ITE (Commercial) | Isolated Module | 3 A |
