RSS Series
Manufacturer: Nichicon
Beta
⌘K

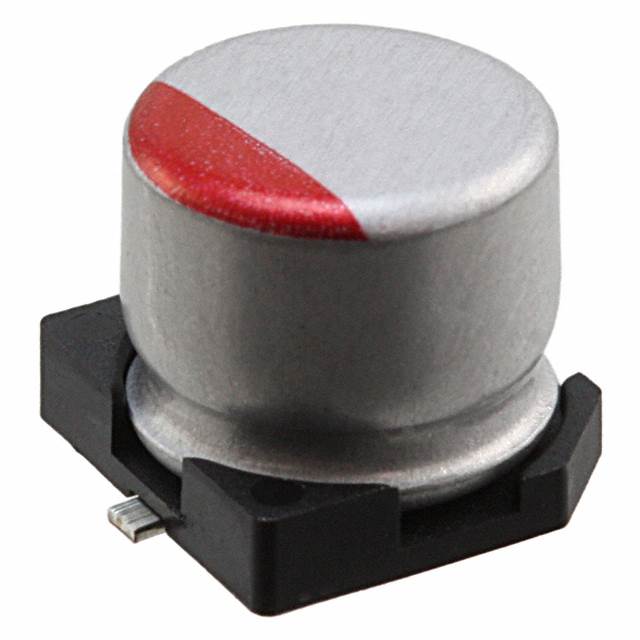

ALUMINUM ORGANIC POLYMER CAPACITORS 25V 47UF 20% TOL.
| Part | Voltage - Rated | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Package / Case | Ripple Current @ Low Frequency | Capacitance | Applications | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Ripple Current @ High Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 25 VDC | 2000 Hrs | 30 mOhms | 0.248 " | 6.3 mm | Polymer | 6.5 mm | 0.256 in | 0.256 in | 6.5 mm | Radial Can - SMD | 280 mA | 47 µF | General Purpose | 20 % | 6 mm | 0.236 " | 2.8 A | -55 C | 105 ░C | Surface Mount |
