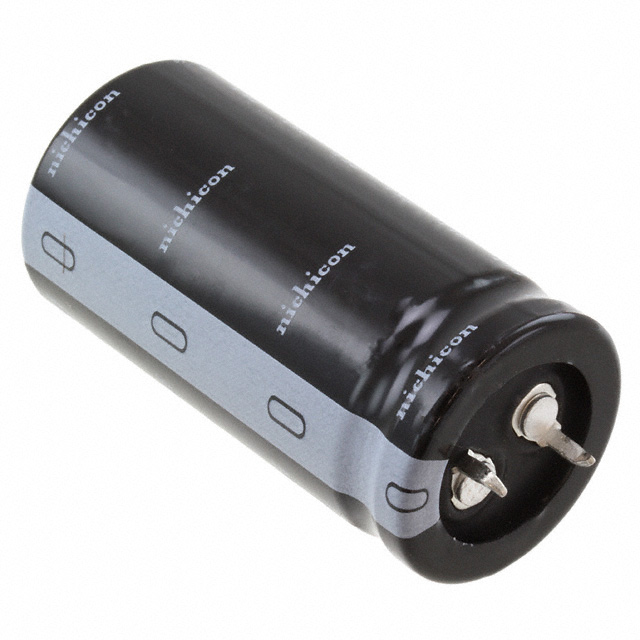

LLS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 250VOLTS 270UF 85C 20X30X10L/S

Part	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Polarization	Ripple Current @ Low Frequency	Applications	Capacitance	Lifetime @ Temp.	Package / Case	Voltage - Rated	Height - Seated (Max)	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon LLS2E271MELY	Through Hole	0.394 in	10 mm	20 %	20 mm	0.787 "	85 °C	-40 C	30 mm	1.181 "	2.13 A	Polar	1.42 A	General Purpose	270 µF	3000 Hrs	Radial Can - Snap-In	250 V
Nichicon LLS2A182MELA	Through Hole	0.394 in	10 mm	20 %	25 mm	0.984 "	85 °C	-40 C		1.457 in	3.2315 A	Polar	2.81 A	General Purpose	1800 µF	3000 Hrs	Radial Can - Snap-In	100 V	37 mm
Nichicon LLS2E821MELC	Through Hole	0.394 in	10 mm	20 %	35 mm	1.378 "	85 °C	-40 C	30 mm	1.181 "	4.44 A	Polar	2.96 A	General Purpose	820 µF	3000 Hrs	Radial Can - Snap-In	250 V
Nichicon LLS2G271MELB	Through Hole	0.394 in	10 mm	20 %		1.181 "	85 °C	-25 °C	30 mm	1.181 "	2.6026 A	Polar	1.82 A	General Purpose	270 µF	3000 Hrs	Radial Can - Snap-In	400 V		30 mm
Nichicon LLS2V471MELA	Through Hole	0.394 in	10 mm	20 %	25 mm	0.984 "	85 °C	-25 °C			3.6465 A	Polar	2.55 A	General Purpose	470 µF	3000 Hrs	Radial Can - Snap-In	350 V			2.047 in	52 mm
Nichicon LLS1J392MELZ	Through Hole	0.394 in	10 mm	20 %	22 mm	0.866 "	85 °C	-40 C	42 mm	1.654 in	3.5535 A	Polar	3.09 A	General Purpose	3900 µF	3000 Hrs	Radial Can - Snap-In	63 V
Nichicon LLS1V123MELA	Through Hole	0.394 in	10 mm	20 %	25 mm	0.984 "	85 °C	-40 C			4.7725 A	Polar	4.15 A	General Purpose	12000 µF	3000 Hrs	Radial Can - Snap-In	35 V			1.85 in	47 mm
Nichicon LLS1H682MELB	Through Hole	0.394 in	10 mm	20 %		1.181 "	85 °C	-40 C		1.457 in	4.5195 A	Polar	3.93 A	General Purpose	6800 µF	3000 Hrs	Radial Can - Snap-In	50 VDC	37 mm	30 mm
Nichicon LLS1V153MELA	Through Hole	0.394 in	10 mm	20 %	25 mm	0.984 "	85 °C	-40 C			5.52 A	Polar	4.8 A	General Purpose		3000 Hrs	Radial Can - Snap-In	35 V			2.047 in	52 mm
Nichicon LLS1H562MELB	Through Hole	0.394 in	10 mm	20 %		1.181 "	85 °C	-40 C	32 mm	1.26 in	3.9445 A	Polar	3.43 A	General Purpose	5.6 mF	3000 Hrs	Radial Can - Snap-In	50 VDC		30 mm
