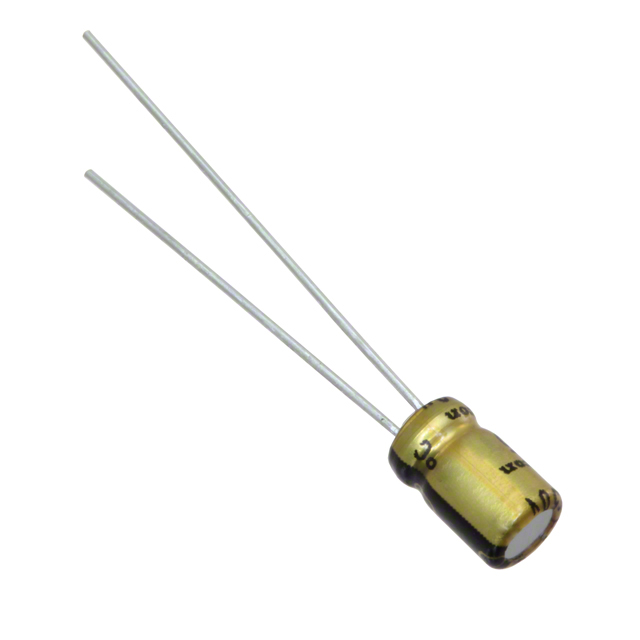

USW Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 100UF 20% 16V AUDIO-LEADED
| Part | Ripple Current @ High Frequency | Lifetime @ Temp. | Polarization | Capacitance | Ripple Current @ Low Frequency | Voltage - Rated | Applications | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Mounting Type | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 147 mA | 1000 Hrs | Polar | 100 µF | 98 mA | 16 V | Audio | 8 mm | 0.315 in | 20 % | Through Hole | Can Radial | 0.248 " | 6.3 mm | 2.5 mm | 0.098 in | 85 °C | -40 C |
