44-547 Series
Manufacturer: Aries Electronics
Beta
⌘K

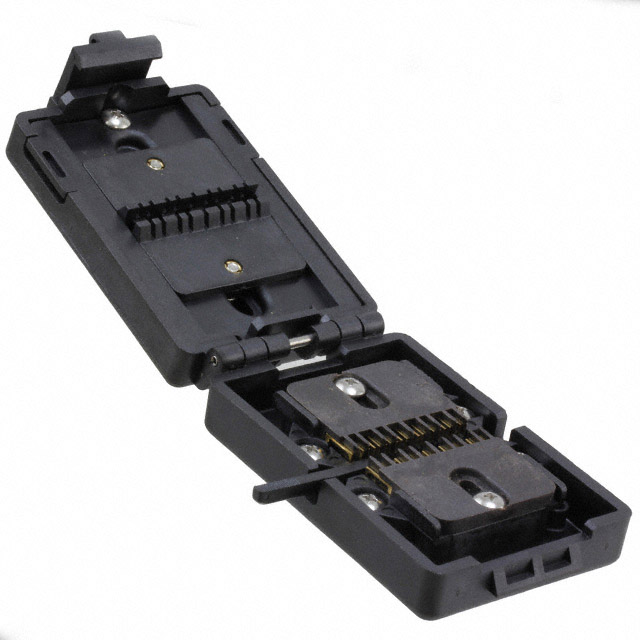

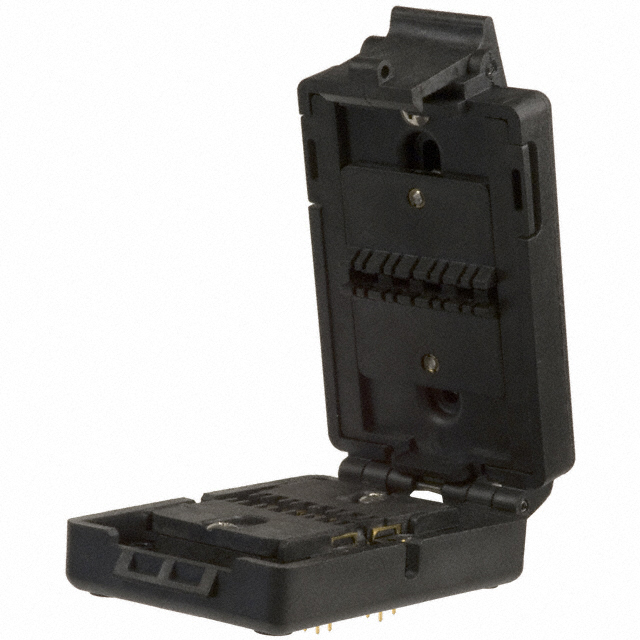

CONN SOCKET SOIC ZIF 44POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Housing Material | Termination | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Type | Contact Material - Mating | Contact Finish - Mating | Features | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3.81 mm | 0.15 in | 1 A | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | Solder | Through Hole | 20 µin | 0.51 µm | Beryllium Copper | 0.51 µm | 20 µin | Gold | 2 22 | 44 | SOIC ZIF (ZIP) | Beryllium Copper | Gold | Closed Frame | 0.05 in | 1.27 mm |
 Aries Electronics | 3.81 mm | 0.15 in | 1 A | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | Solder | Through Hole | 20 µin | 0.51 µm | Beryllium Copper | 0.51 µm | 20 µin | Gold | 2 22 | 44 | SOIC ZIF (ZIP) | Beryllium Copper | Gold | Closed Frame | 0.05 in | 1.27 mm |
