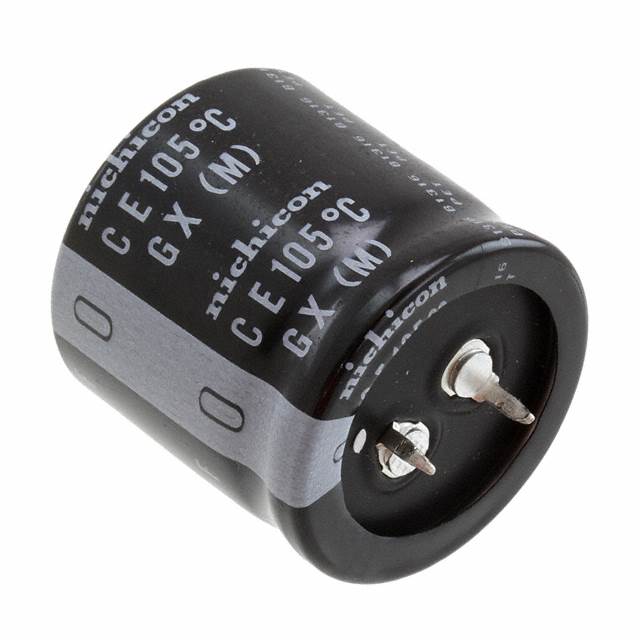

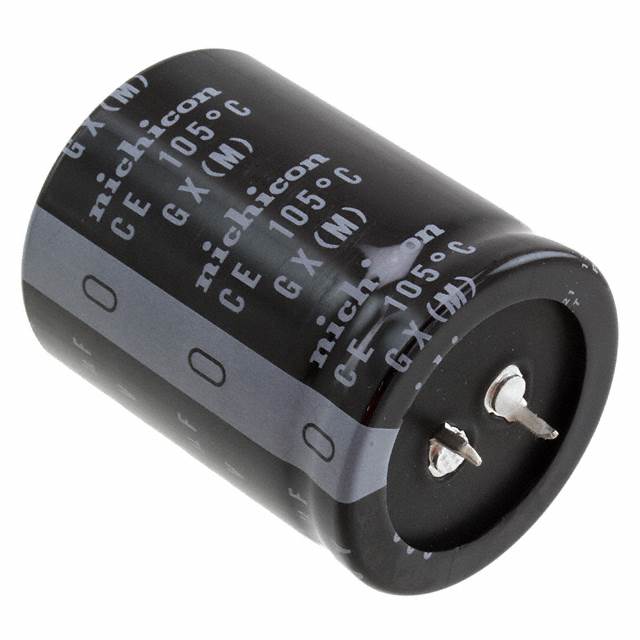

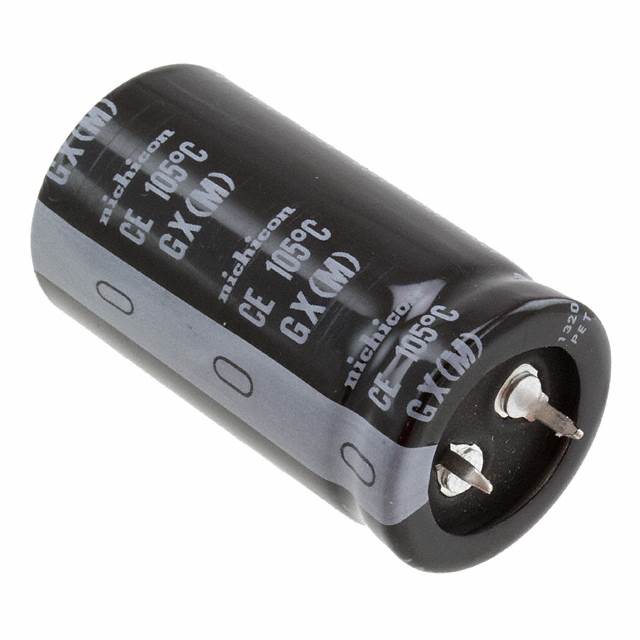

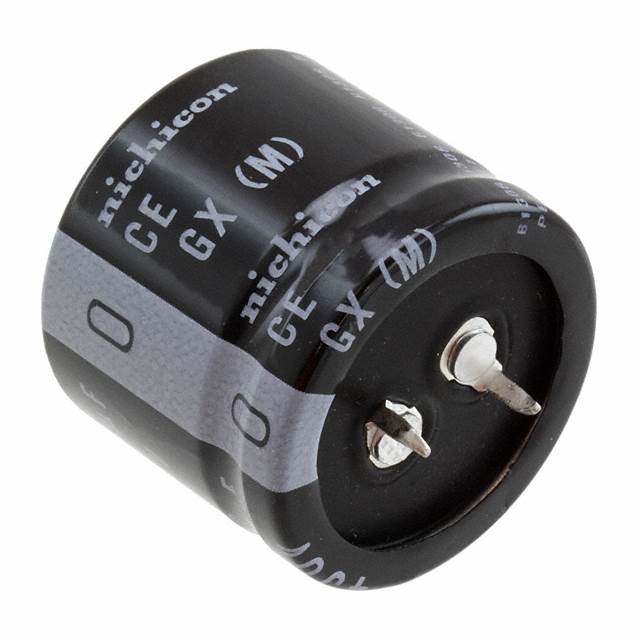

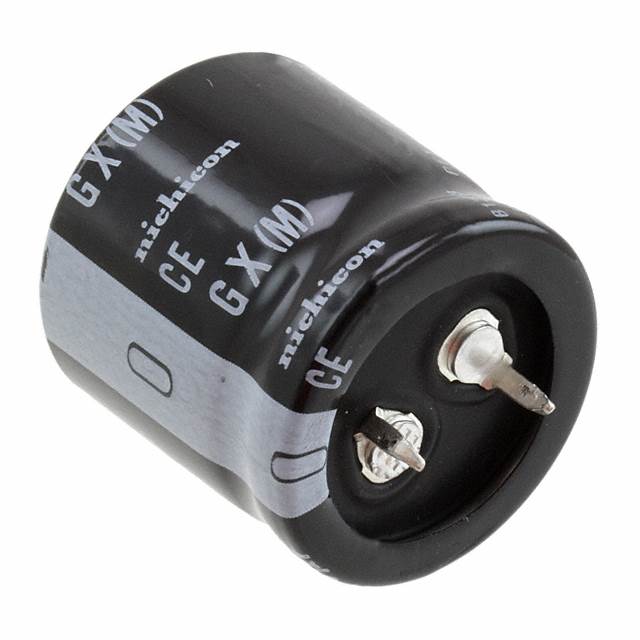

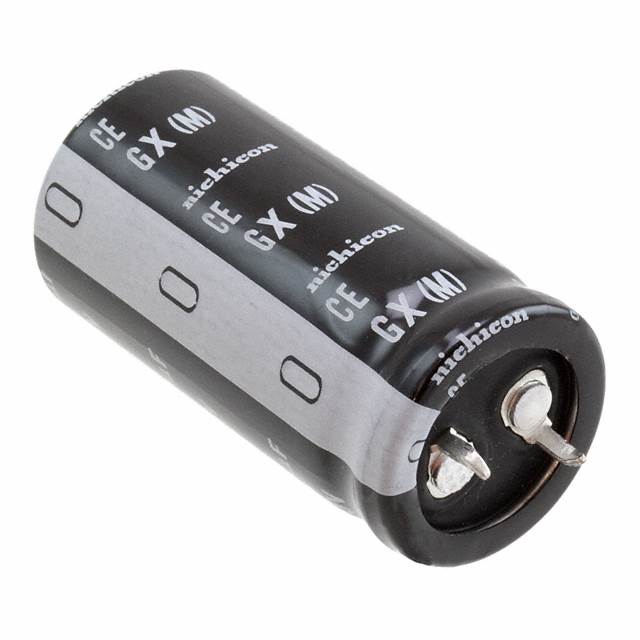

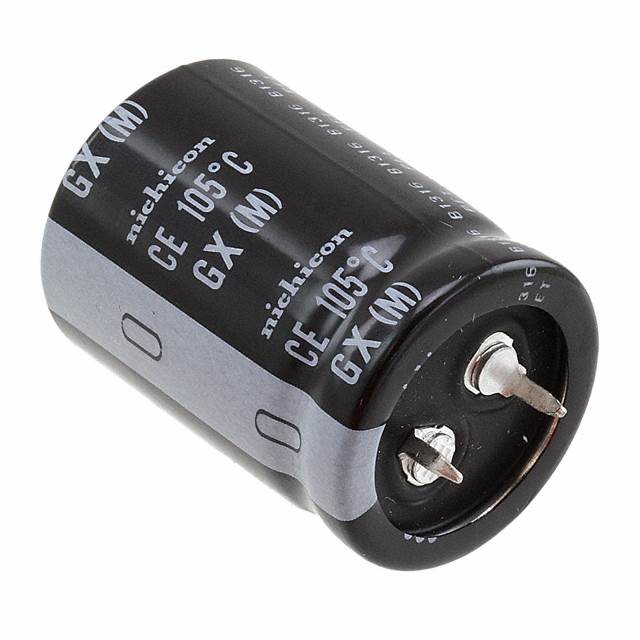

LGX Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 200VOLTS 470UF 20%

Part	Lifetime @ Temp.	Voltage - Rated	Applications	Mounting Type	Capacitance	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ High Frequency	Polarization	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Nichicon LGX2D471MELA25	5000 Hrs	200 VDC	General Purpose	Through Hole	470 µF	0.394 in	10 mm	105 ░C	-25 °C	1.39 A	0.984 "	25 mm	Radial Can - Snap-In	2.085 A	Polar	20 %	1.063 in	27 mm
Nichicon LGX2W561MELC50	5000 Hrs	450 V	General Purpose	Through Hole	560 µF	0.394 in	10 mm	105 ░C	-25 °C	1.98 A	1.378 "	35 mm	Radial Can - Snap-In	2.8314 A	Polar	20 %	2.047 in	52 mm
Nichicon LGX2E561MELB30	5000 Hrs	250 V	General Purpose	Through Hole	560 µF	0.394 in	10 mm	105 ░C	-25 °C	1.83 A	1.181 "		Radial Can - Snap-In	2.745 A	Polar	20 %			30 mm	1.26 in	32 mm
Nichicon LGX2G271MELB30	5000 Hrs	400 V	General Purpose	Through Hole	270 µF	0.394 in	10 mm	105 ░C	-25 °C	1.27 A	1.181 "		Radial Can - Snap-In	1.8161 A	Polar	20 %			30 mm	1.26 in	32 mm
Nichicon LGX2E471MELB25	5000 Hrs	250 V	General Purpose	Through Hole	470 µF	0.394 in	10 mm	105 ░C	-25 °C	1.51 A	1.181 "		Radial Can - Snap-In	2.265 A	Polar	20 %	1.063 in	27 mm	30 mm
Nichicon LGX2H151MELA45	5000 Hrs	500 V	General Purpose	Through Hole	150 µF	0.394 in	10 mm	105 ░C	-25 °C	1.08 A	0.984 "	25 mm	Radial Can - Snap-In	1.5444 A	Polar	20 %	1.85 in	47 mm
Nichicon LGX2D681MELA35	5000 Hrs	200 VDC	General Purpose	Through Hole	680 µF	0.394 in	10 mm	105 ░C	-25 °C	1.87 A	0.984 "	25 mm	Radial Can - Snap-In	2.805 A	Polar	20 %				1.457 in		37 mm
Nichicon LGX2W471MELC45	5000 Hrs	450 V	General Purpose	Through Hole	470 µF	0.394 in	10 mm	105 ░C	-25 °C	1.83 A	1.378 "	35 mm	Radial Can - Snap-In		Polar	20 %	1.85 in	47 mm
Nichicon LGX2E122MELB50	5000 Hrs	250 V	General Purpose	Through Hole	1.2 mF	0.394 in	10 mm	105 ░C	-25 °C	2.68 A	1.181 "		Radial Can - Snap-In	4.02 A	Polar	20 %	2.047 in	52 mm	30 mm
Nichicon LGX2G221MELZ45	5000 Hrs	400 V	General Purpose	Through Hole	220 µF	0.394 in	10 mm	105 ░C	-25 °C	1.09 A	0.866 "	22 mm	Radial Can - Snap-In	1.5587 A	Polar	20 %	1.85 in	47 mm
