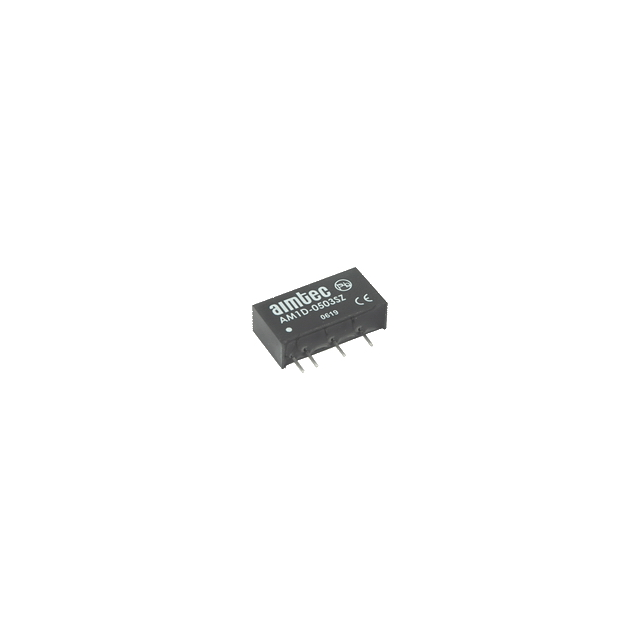

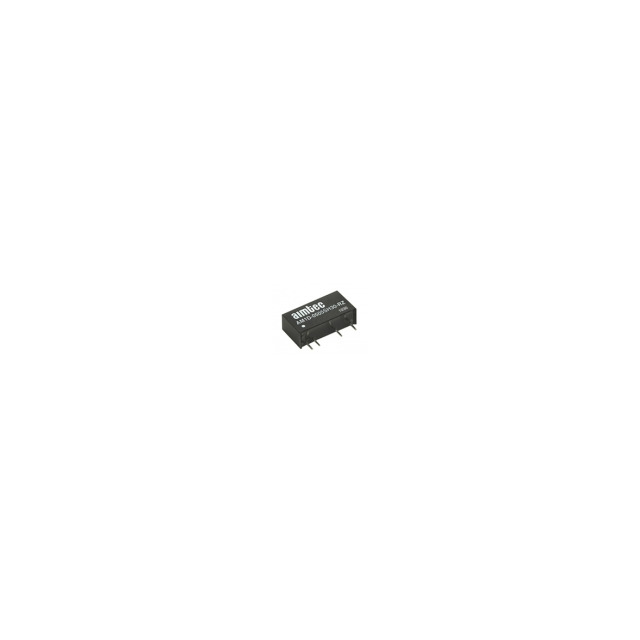

AM1D Series
Manufacturer: aimtec
Beta
⌘K
MODULE DC-DC 3.3VIN 1-OUT 3.3V 0.3A 1W 4-PIN SIP MODULE
| Part | Approval Agency | Voltage - Output 1 | Type | Applications | Voltage - Isolation | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Standard Number | Voltage - Input (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) | Voltage - Output 2 | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | CE cULus cURus EN IEC UL | 3.3 V | Isolated Module | ITE (Commercial) | 1000 V | 303 mA | 7-SIP Module | 1 | 62368-1 | 3.63 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 2.97 V | 76 % | 85 °C | -40 C | ||||||||
 aimtec | CE cURus EN IEC UL | 7.2 V | Isolated Module | ITE (Commercial) | 6000 VDC | 139 mA | 7-SIP Module | 1 | 62368-1 | 13.2 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 10.8 V | 75 % | 85 °C | -40 C | ||||||||
aimtec | CE cURus EN IEC UL | 7.2 V | Isolated Module | ITE (Commercial) | 1000 V | 139 mA | 7-SIP Module | 1 | 62368-1 | 26.4 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 21.6 V | 73 % | 85 °C | -40 C | ||||||||
 aimtec | CE | 15 V | Isolated Module | ITE (Commercial) | 3000 V | 66 mA | 7-SIP Module | 1 | 5.5 V | Through Hole | 0.77 in | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 4.5 V | 87 % | 85 °C | -40 C | 1 mW | ||||||||
aimtec | CE cULus cURus EN IEC UL | 12 V | Isolated Module | ITE (Commercial) | 3000 V | 7-SIP Module | 2 | 62368-1 | 3.63 V | Through Hole | 0.77 in | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 2.97 V | 77 % | 85 °C | -40 C | -12 V | 12 V | 42 mA | -12 V | |||||
aimtec | CE cULus cURus EN IEC UL | 18 V | Isolated Module | ITE (Commercial) | 6000 VDC | 7-SIP Module | 2 | 62368-1 | 26.4 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 21.6 V | 81 % | 85 °C | -40 C | 28 mA | -18 V | 18 V | -18 V | |||||
aimtec | CE cULus cURus EN IEC UL | 7.2 V | Isolated Module | ITE (Commercial) | 6000 VDC | 69 mA | 7-SIP Module | 2 | 62368-1 | 3.63 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 2.97 V | 72 % | 85 °C | -40 C | -7.2 V | 7.2 V | -7.2 V | 69 mA | ||||
aimtec | CE cULus cURus EN IEC UL | 9 V | Isolated Module | ITE (Commercial) | 4000 V | 111 mA | 7-SIP Module | 1 | 62368-1 | 5.5 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 4.5 V | 85 °C | -40 C | |||||||||
aimtec | CE cULus cURus EN IEC UL | 18 V | Isolated Module | ITE (Commercial) | 1000 V | 7-SIP Module | 2 | 62368-1 | 16.5 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 13.5 V | 75 % | 85 °C | -40 C | 28 mA | -18 V | 18 V | -18 V | |||||
aimtec | CE cULus cURus EN IEC UL | 7.2 V | Isolated Module | ITE (Commercial) | 4000 V | 69 mA | 7-SIP Module | 2 | 62368-1 | 3.63 V | Through Hole | 0.76 " | 10 mm | 0.24 " | 6 mm | 0.39 " | 19.5 mm | 2.97 V | 72 % | 85 °C | -40 C | -7.2 V | 7.2 V | -7.2 V | 69 mA |
