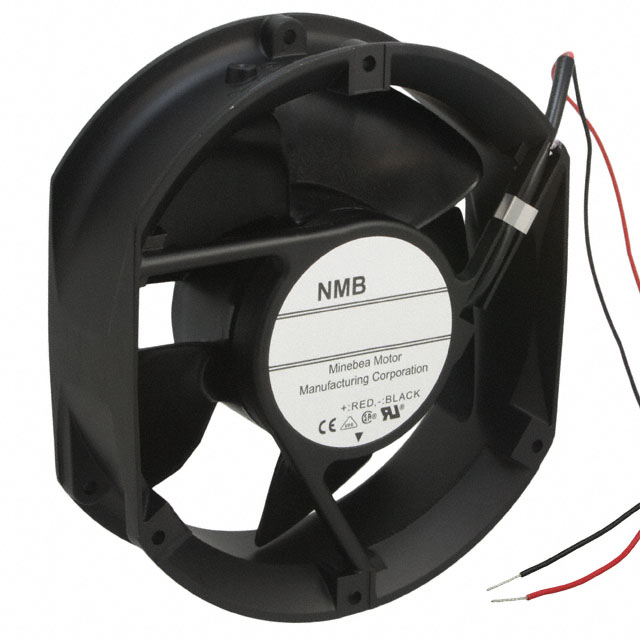

5920PL Series

Catalog

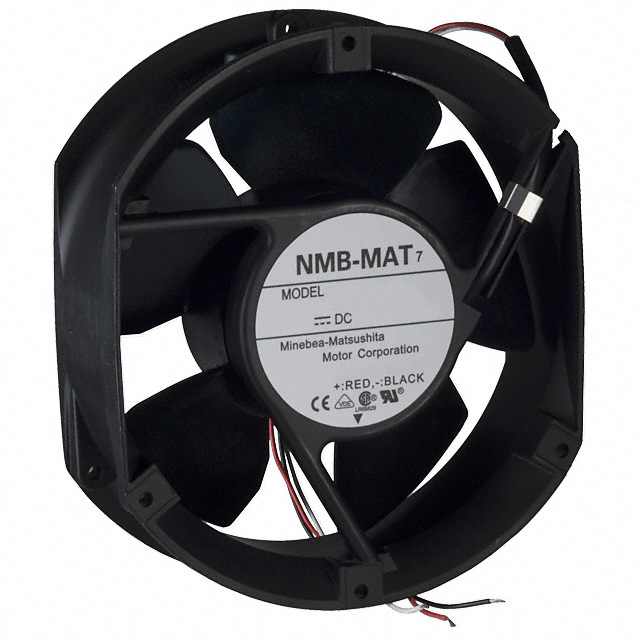

FAN AXIAL 172X50.8MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Current Rating (Amps)	Weight	Weight	Approval Agency	RPM	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Noise	Fan Type	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Bearing Type	Features
NMB TECHNOLOGIES 5920PL-04W-B30-D00	18 VDC	6 VDC	Plastic	Aluminum	1.15 A	1.8 lbs	816.5 g	CE CSA UL VDE	3150 RPM	Rectangular/Rounded	150 mm	172 mm	12 VDC	55 dB(A)	Tubeaxial	6.3 m³/min	225 CFM	50.8 mm	0.562 in H2O	140 Pa	13.8 W	70 °C	-10 °C	2 Wire Leads	Ball
NMB TECHNOLOGIES 5920PL-04W-B39-D50	18 VDC	6 VDC	Plastic	Aluminum	1.15 A	1.8 lbs	816.5 g	CE CSA UL VDE	3150 RPM	Rectangular/Rounded	150 mm	172 mm	12 VDC	55 dB(A)	Tubeaxial	6.3 m³/min	225 CFM	50.8 mm	0.562 in H2O	140 Pa	13.8 W	70 °C	-10 °C	3 Wire Leads	Ball	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-05W-B39-D00	30 V	12 VDC	Plastic	Aluminum	0.55 A	1.8 lbs	816.5 g	CE CSA UL VDE	3150 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	55 dB(A)	Tubeaxial	6.3 m³/min	225 CFM	50.8 mm	0.562 in H2O	140 Pa	13.2 W	70 °C	-10 °C	3 Wire Leads	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 5920PL-05W-B40-D00	30 V	12 VDC	Plastic	Aluminum	660 mA	1.8 lbs	816.5 g	CE CSA UL VDE	3350 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	58 dB(A)	Tubeaxial	6.72 mł/min	240 CFM	50.8 mm	0.622 in H2O	155 Pa	15.8 W	70 °C	-10 °C	2 Wire Leads	Ball
NMB TECHNOLOGIES 5920PL-05W-B60-D00	30 V	12 VDC	Plastic	Aluminum	880 mA	1.8 lbs	816.5 g	CE CSA UL VDE	3750 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	62.5 dB	Tubeaxial	7.84 m³/min	280 CFM	50.8 mm	0.84 in H2O	209.2 Pa	21.1 W	70 °C	-10 °C	2 Wire Leads	Ball
NMB TECHNOLOGIES 5920PL-05W-B10-D00	30 V	12 VDC	Plastic	Aluminum	360 mA	1.8 lbs	816.5 g	CE CSA UL VDE	2550 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	50 dB(A)	Tubeaxial	5.04 mł/min	180 CFM	50.8 mm	0.371 in H2O	92.5 Pa	8.64 W	70 °C	-10 °C	2 Wire Leads	Ball
NMB TECHNOLOGIES 5920PL-05W-B20-D00	30 V	12 VDC	Plastic	Aluminum	460 mA	1.8 lbs	816.5 g	CE CSA UL VDE	2850 RPM	Rectangular/Rounded	150 mm	172 mm	24 VDC	53 dB	Tubeaxial	5.6 mł/min	200 CFM	50.8 mm	0.371 in H2O	92.5 Pa	11 W	70 °C	-10 °C	2 Wire Leads	Ball
NMB TECHNOLOGIES 5920PL-07W-B69-D50	60 V	25 VDC	Plastic	Aluminum	0.47 A	1.8 lbs	816.5 g	CE CSA UL VDE	3750 RPM	Rectangular/Rounded	150 mm	172 mm	48 VDC	62.5 dB	Tubeaxial	7.84 m³/min	280 CFM	50.8 mm	0.84 in H2O	209.2 Pa	22.6 W	70 °C	-10 °C	3 Wire Leads	Ball	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-07W-B49-D50	60 V	25 VDC	Plastic	Aluminum	0.33 A	1.8 lbs	816.5 g	CE CSA UL VDE	3350 RPM	Rectangular/Rounded	150 mm	172 mm	48 VDC	58 dB(A)	Tubeaxial	6.72 mł/min	240 CFM	50.8 mm	0.622 in H2O	155 Pa	15.8 W	70 °C	-10 °C	3 Wire Leads	Ball	Speed Sensor (Tach)
NMB TECHNOLOGIES 5920PL-07W-B79-D50	60 V	25 VDC	Plastic	Aluminum	0.51 A	1.8 lbs	816.5 g	CE CSA UL VDE	4000 RPM	Rectangular/Rounded	150 mm	172 mm	48 VDC	63.2 dB	Tubeaxial	8.4 mł/min	300 CFM	50.8 mm	0.909 in H2O	226.5 Pa	24.5 W	70 °C	-10 °C	3 Wire Leads	Ball	Speed Sensor (Tach)
