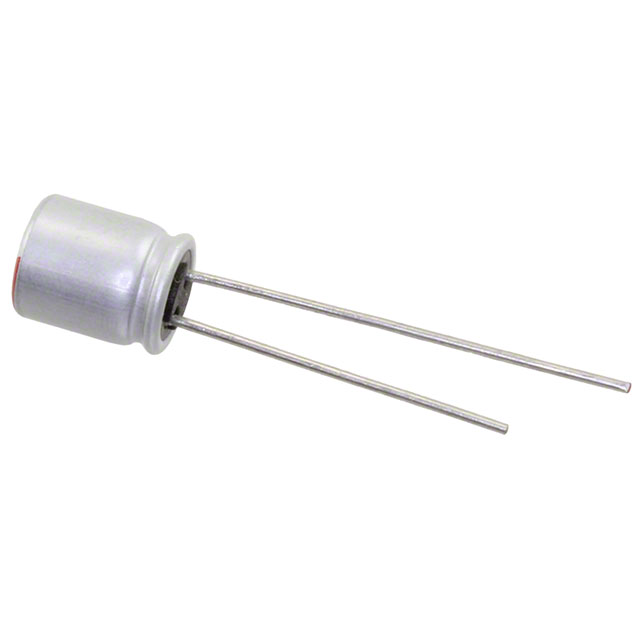

RS8 Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS

Part	Capacitance	Type	Lead Spacing	Lead Spacing	Tolerance	Voltage - Rated	Mounting Type	Applications	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]
Nichicon RS80G561MCN1
Nichicon RS80E821MDNASQJT	820 µF	Polymer	2.5 mm	0.098 in	20 %	2.5 V	Through Hole	General Purpose	5.6 A	5000 Hrs	Can Radial	8 mm	0.315 in	7 mOhms	-55 C	105 ░C	560 mA	0.248 "	6.3 mm
Nichicon RS80G561MDN1	560 µF	Polymer	2.5 mm	0.098 in	20 %	4 V	Through Hole	General Purpose		2000 Hrs	Can Radial	9 mm	0.354 in	7 mOhms	-55 C	105 ░C	500 mA	0.248 "	6.3 mm
Nichicon RS80J471MDNASQPX	470 µF	Polymer	2.5 mm	0.098 in	20 %	6.3 VDC	Through Hole	General Purpose		5000 Hrs	Can Radial	9 mm	0.354 in	8 mOhms	-55 C	105 ░C	500 mA	0.248 "	6.3 mm
Nichicon RS81E680MCN1	68 µF	Polymer	2.5 mm	0.098 in	20 %	25 VDC	Through Hole	General Purpose	3.5 A	2000 Hrs	Can Radial	9 mm	0.354 in		-55 C	105 ░C	350 mA	0.248 "	6.3 mm
Nichicon RS80E331MDNASQJT	330 µF	Polymer	2.5 mm	0.098 in	20 %	2.5 V	Through Hole	General Purpose	5.6 A	5000 Hrs	Can Radial	8 mm	0.315 in	7 mOhms	-55 C	105 ░C	560 mA	0.248 "	6.3 mm
Nichicon RS80J331MCNASQ
Nichicon RS80G561MDN1PX	560 µF	Polymer	2.5 mm	0.098 in	20 %	4 V	Through Hole	General Purpose		2000 Hrs	Can Radial	9 mm	0.354 in	7 mOhms	-55 C	105 ░C	500 mA	0.248 "	6.3 mm
