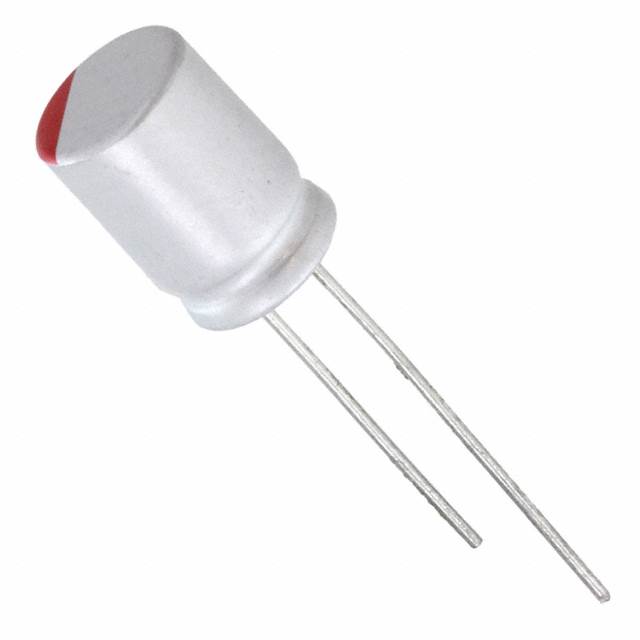

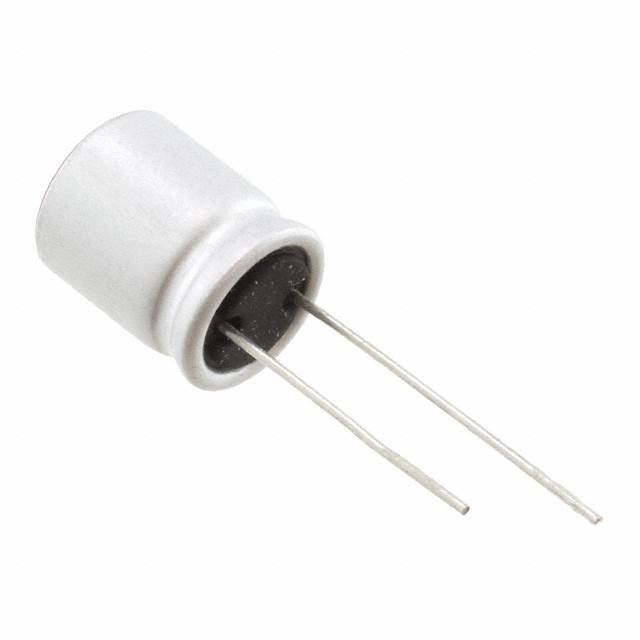

RNS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 6.3 VOLT 1000UF 20%

Part	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Voltage - Rated	Applications	Package / Case	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon RNS0J102MDN1	5.5 A	10 mOhm	Polymer	14 mm	0.551 in	2000 Hrs	6.3 VDC	General Purpose	Can Radial	0.197 "	5 mm	1000 µF	0.394 in	10 mm	-55 C	105 ░C	Through Hole	20 %
Nichicon RNS0J221MDN1KX	3.9 A	21 mOhms	Polymer			2000 Hrs	6.3 VDC	General Purpose	Can Radial	0.138 in	3.5 mm	220 µF	0.315 in	8 mm	-55 C	105 ░C	Through Hole	20 %	390 mA	0.512 "	13 mm
Nichicon RNS1D680MDN1KX	3.6 A	25 mOhm	Polymer			2000 Hrs	20 V	General Purpose	Can Radial	0.138 in	3.5 mm	68 µF	0.315 in	8 mm	-55 C	105 ░C	Through Hole	20 %	360 mA	0.512 "	13 mm
Nichicon RNS0J821MDN1	5.5 A	10 mOhm	Polymer	14 mm	0.551 in	2000 Hrs	6.3 VDC	General Purpose	Can Radial	0.197 "	5 mm	820 µF	0.394 in	10 mm	-55 C	105 ░C	Through Hole	20 %
Nichicon RNS1C181MDN1KX	4.7 A	16 mOhm	Polymer			2000 Hrs	16 V	General Purpose	Can Radial	0.138 in	3.5 mm	180 µF	0.315 in	8 mm	-55 C	105 ░C	Through Hole	20 %	470 mA	0.512 "	13 mm
