180-11 Series

Catalog

LIQUID COLD PLATES FOR RECTIFIERS AND POWER DIODES ROHS COMPLIANT: YES

Part	Thermal Resistance @ GPM	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Weight	Weight	Product Type	Weight [custom]	Weight [custom]
Wakefield Thermal Solutions 180-11-24C	0.02 °C/W	38.1 mm	804.9 mm	1.5 "	5 in	127.2 mm	31.69 in	5.7 lbs	2.6 kg	Cold Plate Passive
Wakefield Thermal Solutions 180-11-24C	0.02 °C/W	38.1 mm	804.9 mm	1.5 "	5 in	127.2 mm	31.69 in	5.7 lbs	2.6 kg	Cold Plate Passive

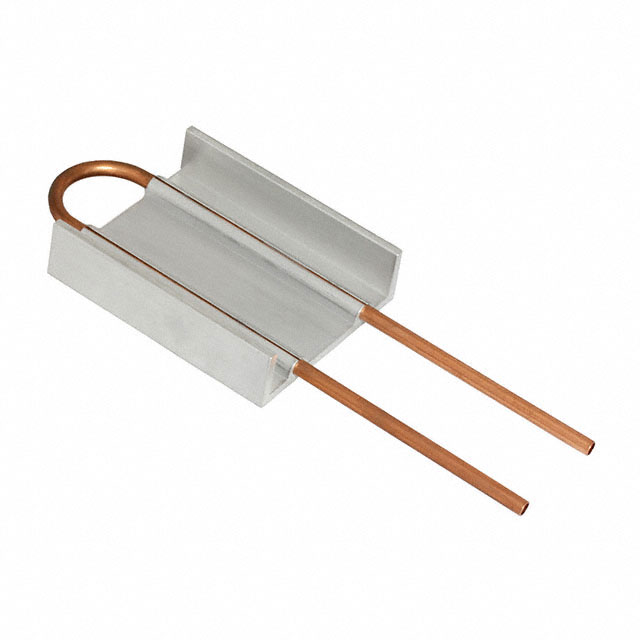

Wakefield Thermal Solutions 180-11-6C	0.084 °C/W	38.1 mm	347.7 mm	1.5 "	5 in	127.2 mm	13.69 "			Cold Plate Passive	680.4 g	1.5 lbs
Wakefield Thermal Solutions 180-11-12C	0.041 °C/W	38.1 mm	500.1 mm	1.5 "	5 in	127.2 mm	19.69 in			Cold Plate Passive	1.3 kg	2.9 lbs
Wakefield Thermal Solutions 180-11-6C	0.084 °C/W	38.1 mm	347.7 mm	1.5 "	5 in	127.2 mm	13.69 "			Cold Plate Passive	680.4 g	1.5 lbs
Wakefield Thermal Solutions 180-11-12C	0.041 °C/W	38.1 mm	500.1 mm	1.5 "	5 in	127.2 mm	19.69 in			Cold Plate Passive	1.3 kg	2.9 lbs
