IPA60R380 Series

Manufacturer: INFINEON

Catalog

COOLMOS™ N-CHANNEL SUPERJUNCTION MOSFET 600 V ;

Part	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Supplier Device Package	FET Type	Technology	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Vgs(th) (Max) @ Id	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs

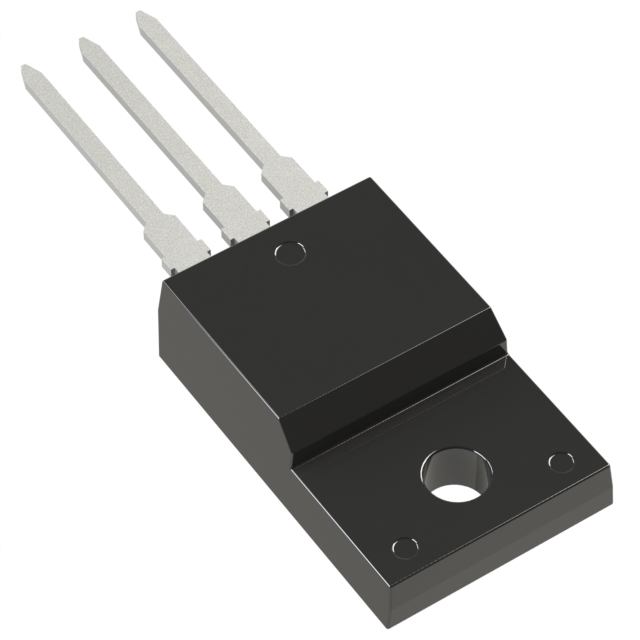

INFINEON IPA60R380E6XKSA1	10 V	TO-220-3 Full Pack	PG-TO220-FP	N-Channel	MOSFET (Metal Oxide)	600 V	10.6 A	150 °C	-55 °C	32 nC	380 mOhm	31 W	700 pF	Through Hole	3.5 V	20 V
INFINEON IPA60R380P6XKSA1	10 V	TO-220-3 Full Pack	PG-TO220-FP	N-Channel	MOSFET (Metal Oxide)	600 V	10.6 A	150 °C	-55 °C		380 mOhm	31 W		Through Hole	4.5 V	20 V	877 pF	19 nC
INFINEON IPA60R380C6XKSA1	10 V	TO-220-3 Full Pack	PG-TO220-FP	N-Channel	MOSFET (Metal Oxide)	600 V	10.6 A	150 °C	-55 °C	32 nC	380 mOhm	31 W	700 pF	Through Hole	3.5 V	20 V
