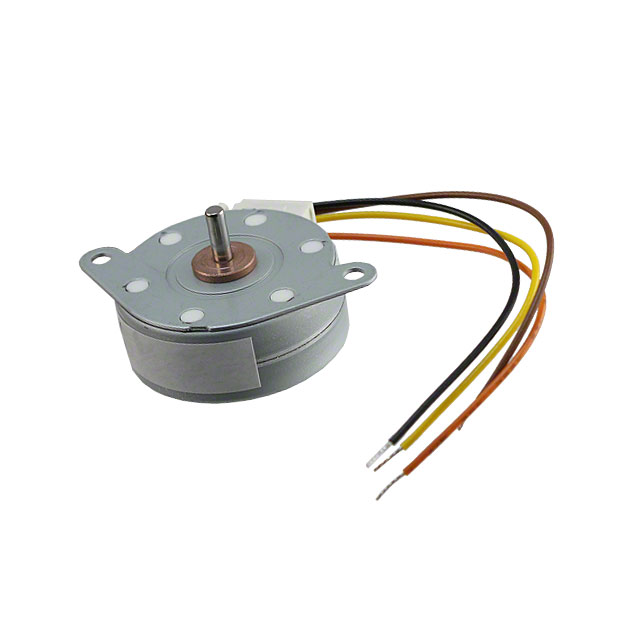

PM35S Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 50 MN-M, 600 MA
| Part | Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Coil Resistance | Current Rating (Amps) | Features | Size / Dimension [diameter] | Size / Dimension [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Step Angle | Termination Style | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Permanent Magnet | 42 mm | 1.65 in | 5.5 Ohms | 600 mA | Round Shaft | 1.378 in | 35 mm | 6.94 oz-in | 49 mNm | 10 mm | 0.394 " | Bipolar | 0.118 in | 3 mm | 7.5 ° | Wire Leads | 24 VDC |
