UVK Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 400VOLTS 68UF 16X31.5 20% 7.5LS

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Package / Case	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]

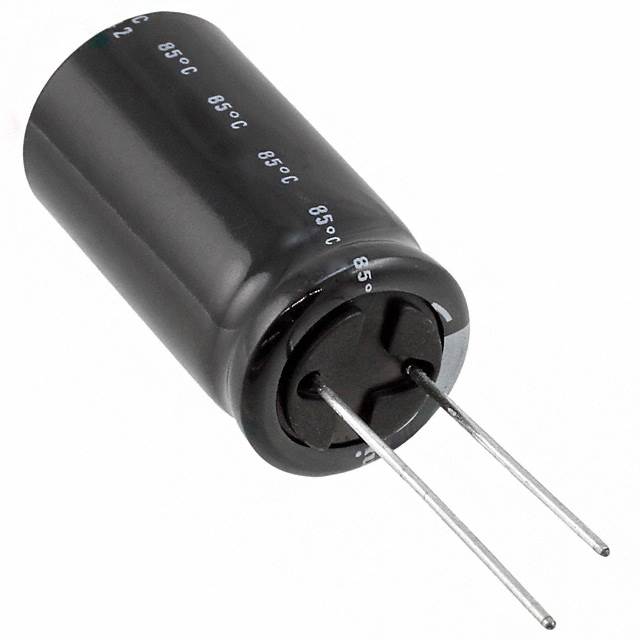

Nichicon UVK2G680MHD	Through Hole	85 °C	-40 C	General Purpose	68 µF	340 mA	2000 Hrs	1.319 in	33.5 mm	Can Radial	0.295 in	7.5 mm	400 V	20 %	Polar	0.63 in	16 mm	544 mA

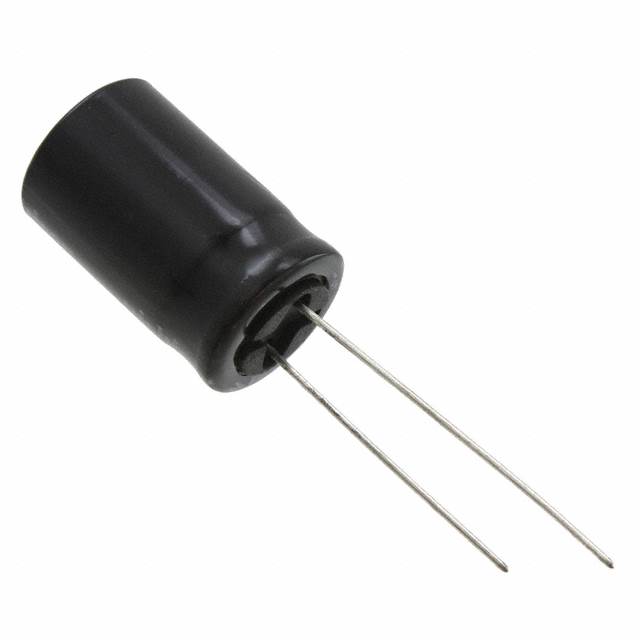

Nichicon UVK2G220MHD	Through Hole	85 °C	-40 C	General Purpose	22 µF	200 mA	2000 Hrs			Can Radial	0.197 "	5 mm	400 V	20 %	Polar	0.492 in	12.5 mm	320 mA	1.063 in	27 mm
Nichicon UVK2V470MHD	Through Hole	85 °C	-40 C	General Purpose	47 µF	300 mA	2000 Hrs			Can Radial	0.295 in	7.5 mm	350 V	20 %	Polar	0.63 in	16 mm	480 mA	1.063 in	27 mm
Nichicon UVK2E470MHD	Through Hole	85 °C	-40 C	General Purpose	47 µF	270 mA	2000 Hrs			Can Radial	0.197 "	5 mm	250 V	20 %	Polar	0.492 in	12.5 mm	432 mA			0.866 in	22 mm

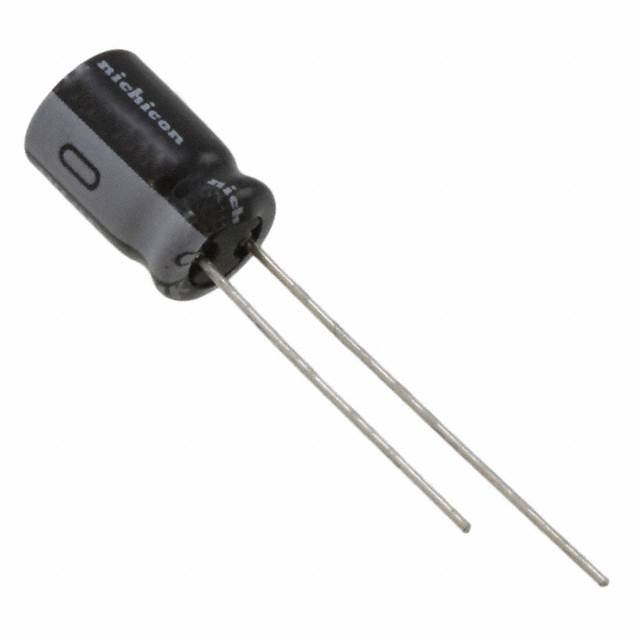

Nichicon UVK1V221MPD1TD	Through Hole	85 °C	-40 C	General Purpose	220 µF	350 mA	2000 Hrs	0.512 "		Can Radial	0.138 in	3.5 mm	35 V	20 %	Polar	0.315 in	8 mm	525 mA					13 mm
Nichicon UVK1A332MHD1TO	Through Hole	85 °C	-40 C	General Purpose	3.3 mF	1.45 A	2000 Hrs			Can Radial	0.197 "	5 mm	10 V	20 %	Polar	0.492 in	12.5 mm	1.6675 A			0.866 in	22 mm
Nichicon UVK1A682MHD	Through Hole	85 °C	-40 C	General Purpose	6800 µF	2.25 A	2000 Hrs			Can Radial	0.295 in	7.5 mm	10 V	20 %	Polar	0.63 in	16 mm	2.5875 A	1.063 in	27 mm
Nichicon UVK2A100MDD	Through Hole	85 °C	-40 C	General Purpose	10 µF	70 mA	2000 Hrs			Can Radial	0.079 in	2 mm	100 V	20 %	Polar	0.197 in	5 mm	140 mA		0.492 in				12.5 mm
Nichicon UVK1C471MPD1TA	Through Hole	85 °C	-40 C	General Purpose	470 µF	440 mA	2000 Hrs	0.512 "		Can Radial	0.138 in	3.5 mm	16 V	20 %	Polar	0.315 in	8 mm	660 mA					13 mm
Nichicon UVK2G2R2MPD1TA	Through Hole	85 °C	-40 C	General Purpose	2.2 µF	38 mA	2000 Hrs	0.512 "		Can Radial	0.138 in	3.5 mm	400 V	20 %	Polar	0.315 in	8 mm	60.8 mA					13 mm
