IRFPS38 Series

Catalog

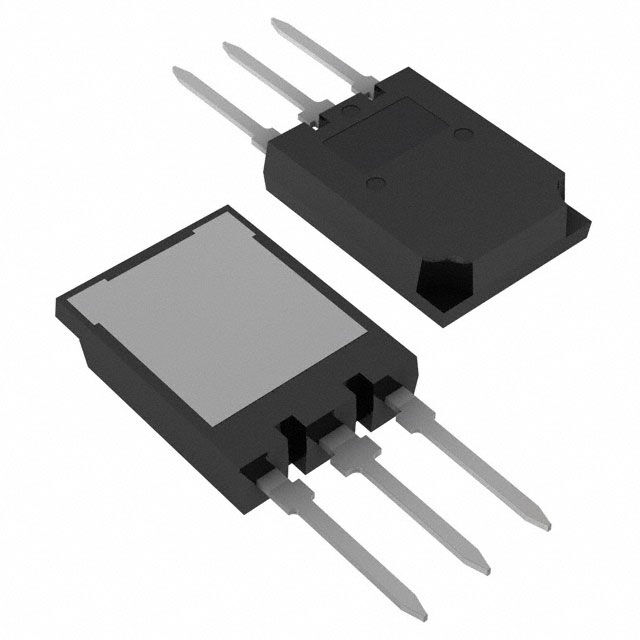

MOSFET N-CH 600V 38A SUPER247

Part	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Technology	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Vgs (Max)	Rds On (Max) @ Id, Vgs [Max]	FET Type	Mounting Type
Vishay General Semiconductor - Diodes Division IRFPS38N60LPBF	7990 pF	-55 °C	150 °C	38 A	5 V	MOSFET (Metal Oxide)	SUPER-247™ (TO-274AA)	320 nC	10 V	TO-274AA	540 W	600 V	30 V	150 mOhm	N-Channel	Through Hole
Vishay General Semiconductor - Diodes Division IRFPS38N60L	7990 pF	-55 °C	150 °C	38 A	5 V	MOSFET (Metal Oxide)	SUPER-247™ (TO-274AA)	320 nC	10 V	TO-274AA	540 W	600 V	30 V	150 mOhm	N-Channel	Through Hole
