UM-LR-PC Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

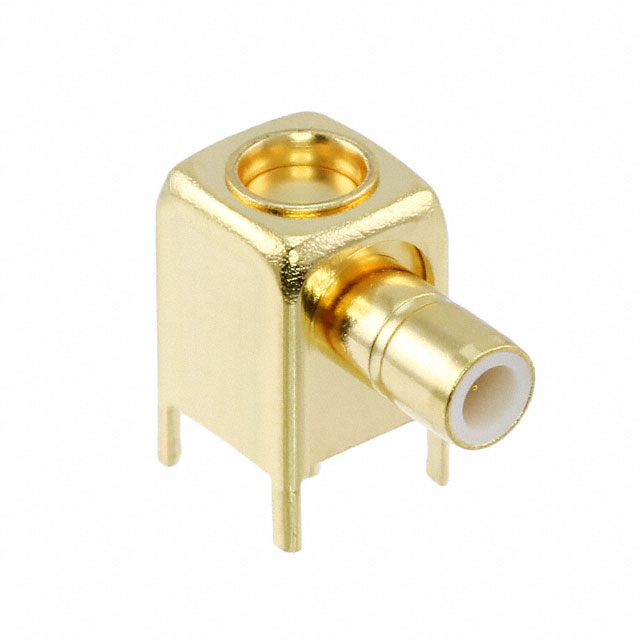

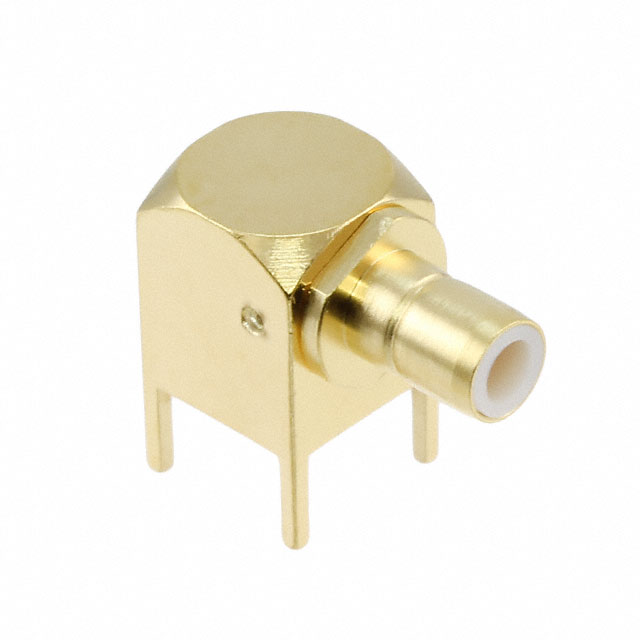

CONN UMC RCPT R/A 50 OHM PCB
| Part | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Connector Style | Housing Color | Fastening Type | Shield Termination | Mounting Type | Number of Ports | Frequency - Max [Max] | Connector Type | Impedance | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 85 °C | Brass | 1000 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 1 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 1 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd | ||||||||||||||||||
Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Gold | -30 ░C | 85 °C | Brass | 500 | U.FL (UMCC) | Gold | Snap-On | Solder | Right Angle Through Hole | 1 | 3 GHz | Receptacle Male Pin | 50 Ohms | Brass | Solder |
Hirose Electric Co Ltd |
