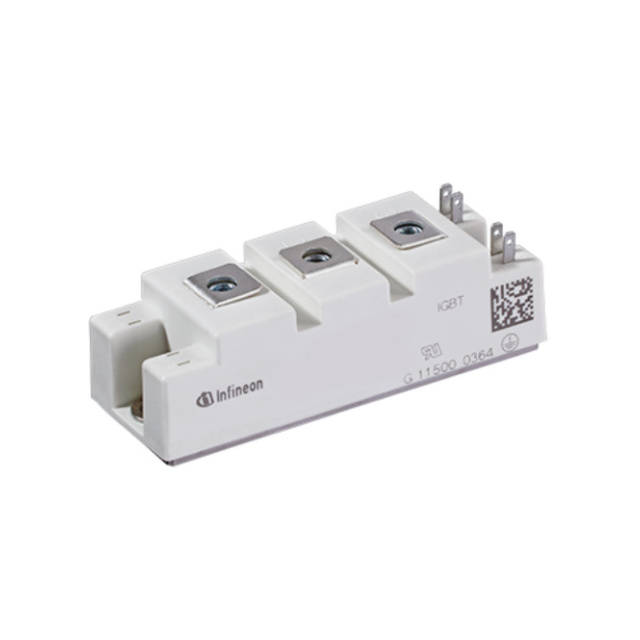

BSM150 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE 1200V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Package / Case	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Mounting Type	Input	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Operating Temperature
INFINEON BSM150GT120DN2BOSA1
INFINEON BSM150GB60DLCHOSA1	125 °C	-40 C	500 çA	Module	Single	600 V	2.45 V	6.5 nF	Chassis Mount	Standard	595 W	180 A	Module
INFINEON BSM150GB120DLCHOSA1	125 °C	-40 C	5 mA	Module	Half Bridge	1200 V	2.6 V	11 nF	Chassis Mount	Standard	1250 W		Module
INFINEON BSM150GB170DN2E3256HDLA1			300 µA	Module	2 Independent	1700 V	3.2 V	10000 pF	Chassis Mount	Standard	1250 W		Module	150 °C
INFINEON BSM150GB170DN2HOSA1			1.5 mA	Module	Half Bridge	1700 V	3.9 V	20 nF	Chassis Mount	Standard	1250 W	220 A	Module	150 °C
