TMV 0505 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Number of Outputs | Voltage - Output 1 | Applications | Current - Output (Max) [Max] | Features | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Efficiency | Voltage - Input (Min) [Min] | Voltage - Isolation | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

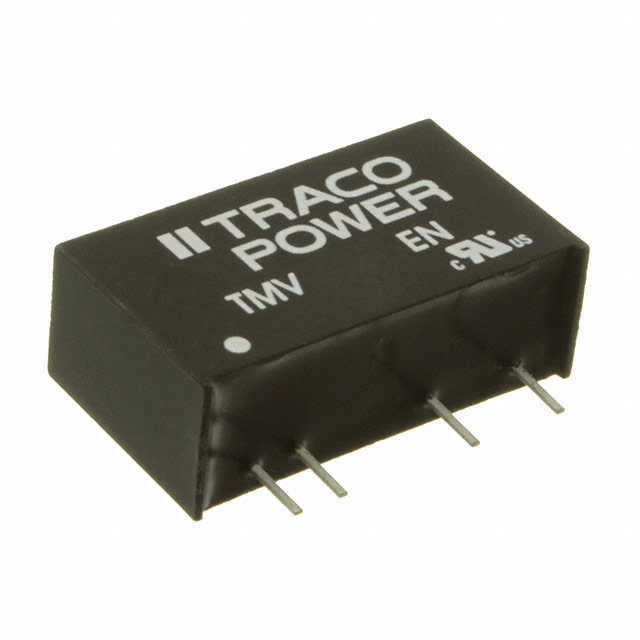

 Traco Power | 1 | 5 V | ITE (Commercial) | 200 mA | SCP | 7-SIP Module 4 Leads | 85 °C | -25 °C | Isolated Module | Through Hole | 66 % | 4.5 V | 3000 V | 5.5 V | 0.49 " | 0.3 " | 0.87 in | 22 mm | 7.5 mm | 12.5 mm | |||

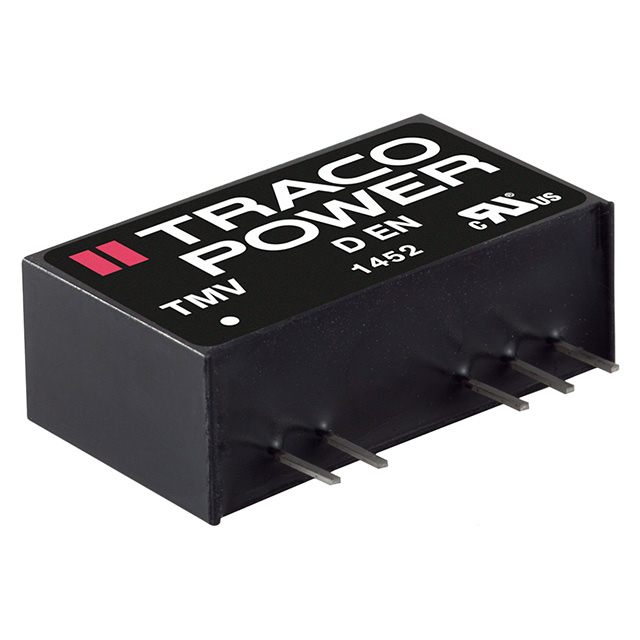

 Traco Power | 2 | 5 V | ITE (Commercial) | SCP | 7-SIP Module 5 Leads | 85 °C | -25 °C | Isolated Module | Through Hole | 66 % | 4.5 V | 3000 V | 5.5 V | 0.49 " | 0.3 " | 0.87 in | 22 mm | 7.5 mm | 12.5 mm | 100 mA | 100 mA | -5 V | |
 Traco Power | 1 | 5 V | ITE (Commercial) | 200 mA | SCP | 7-SIP Module 4 Leads | 85 °C | -40 °C | Isolated Module | Through Hole | 70 % | 5 V | 3000 V | 5.5 V | 0.4 " | 0.24 " | 0.77 in | 19.5 mm | 6.1 mm | 10.2 mm |
