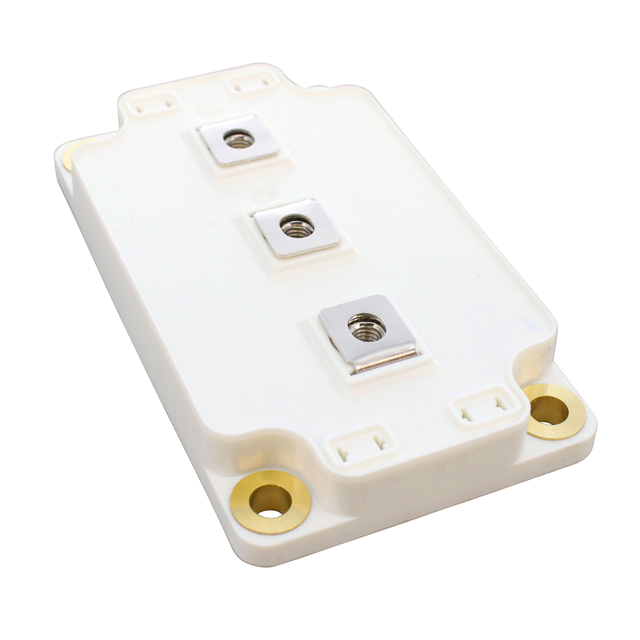

MSCDC450A170AG-Module Series

1700V, 450A, SP6C Phase Leg mSiC™ Diode Module

Catalog

1700V, 450A, SP6C Phase Leg mSiC™ Diode Module

Part	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Mounting Type
Microchip Technology MSCDC450A170AG	Module	1.8 mA	1700 V	SiC (Silicon Carbide) Schottky	1.8 V	0 ns	450 A	1 Pair Series Connection	-40 °C	175 ░C	No Recovery Time	Chassis Mount

Catalog

1700V, 450A, SP6C Phase Leg mSiC™ Diode Module

Key Features

- Configuration: Phase Leg

- VRRM (V): 1700

- VF (V): 1.5

- Current (A) Tc=80C: 450

- Silicon Type: SiC Diode

- Package: SP6C

Description

* SiC Schottky Diode * Zero reverse recovery * Zero forward recovery * Temperature Independent switching behavior * Positive temperature coefficient on VF * Low stray inductance * High efficiency converter * Outstanding performance at high frequency operation * Stable temperature behavior * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * RoHS Compliant
