DB0870505 Series

Catalog

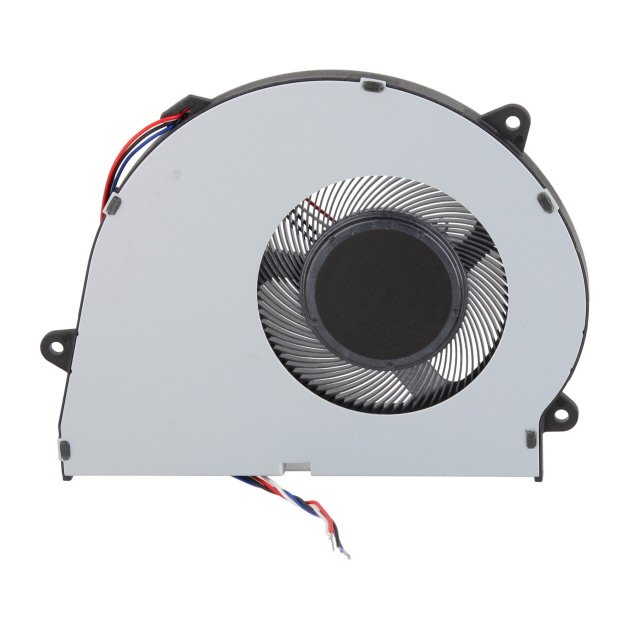

FAN BLOWER 74.5X5MM 5VDC RECT

Part	Air Flow	Air Flow	Width [y]	Termination	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Power (Watts)	Features	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	Noise	Fan Type	Weight	Weight	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Current Rating (Amps)
Wakefield Thermal Solutions DB0870505H1A-BT0	0.129 m³/min	4.6 CFM	5 mm	4 Position Rectangular Connector	IP55 - Dust Protected Water Resistant	70 °C	-10 °C	4500 RPM	2.25 W	PWM Control Speed Sensor (Tach)	0.571 in H2O	142.2 Pa	5 V	Ball	40.9 dB(A)	Blower	0.091 lb	41.28 g	Rectangular/Rounded	90 mm	74.5 mm
Wakefield Thermal Solutions DB0870505H1A-BT0	0.129 m³/min	4.6 CFM	5 mm	4 Position Rectangular Connector	IP55 - Dust Protected Water Resistant	70 °C	-10 °C	4500 RPM	2.25 W	PWM Control Speed Sensor (Tach)	0.571 in H2O	142.2 Pa	5 V	Ball	40.9 dB(A)	Blower	0.091 lb	41.28 g	Rectangular/Rounded	90 mm	74.5 mm	2.5 V	5.5 V	40 °C 50000 Hrs	0.45 A
