UBX Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, 1000 ΜF, 25 V, ± 20%, PC PIN, 2000 HOURS @ 105°C, POLAR

Part	Tolerance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Applications	Polarization	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Lifetime @ Temp.	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

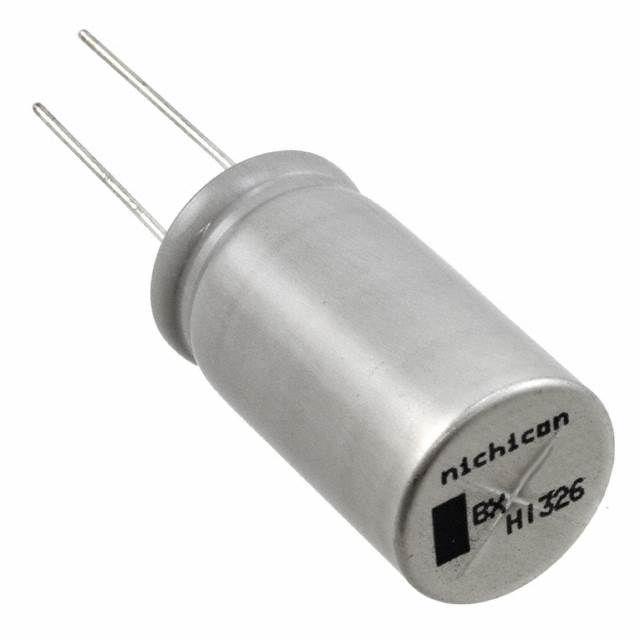

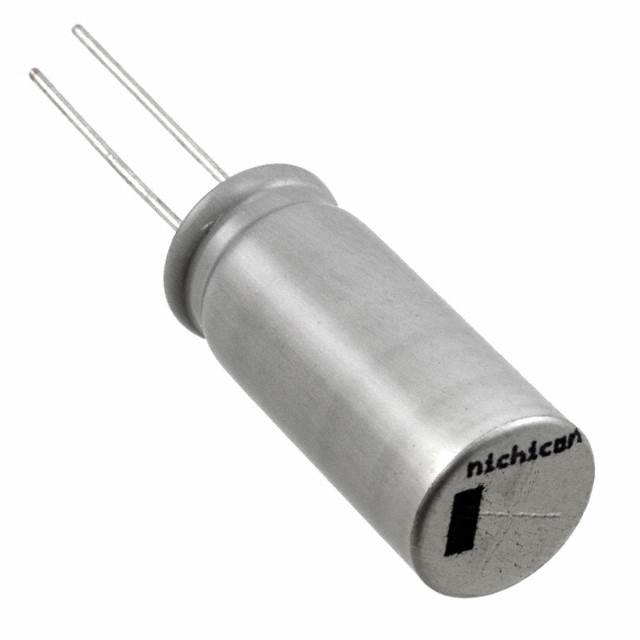

Nichicon UBX1E102MHL	20 %	1 A	670 mA	Automotive	Polar	0.295 in	7.5 mm	-55 C	150 °C	1000 µF	Through Hole	2000 Hrs	Can Radial	25 VDC	0.63 in	16 mm	1.299 in	33 mm	AEC-Q200
Nichicon UBX1J331MHL	20 %	1.17 A	585 mA	Automotive	Polar	0.197 "	5 mm	-55 C	150 °C	330 µF	Through Hole	1000 Hrs	Can Radial	63 V	0.492 in	12.5 mm	1.299 in	33 mm	AEC-Q200

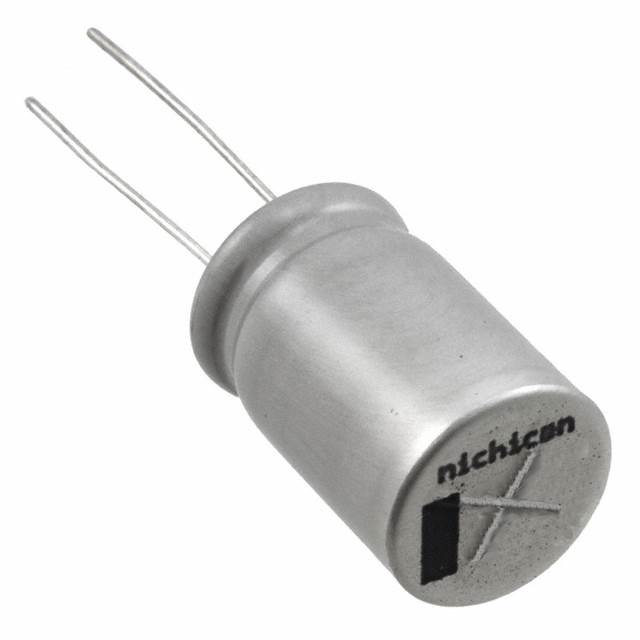

Nichicon UBX2C330MHL	20 %	414 mA	230 mA	Automotive	Polar	0.197 "	5 mm	-40 C	150 °C	33 ÁF	Through Hole	1000 Hrs	Can Radial	160 V	0.492 in	12.5 mm			AEC-Q200	0.846 "	21.5 mm
Nichicon UBX1J681MHL	20 %	1.52 A	760 mA	Automotive	Polar	0.295 in	7.5 mm	-55 C	150 °C	680 µF	Through Hole	2000 Hrs	Can Radial	63 V	0.63 in	16 mm			AEC-Q200			37 mm	1.457 in

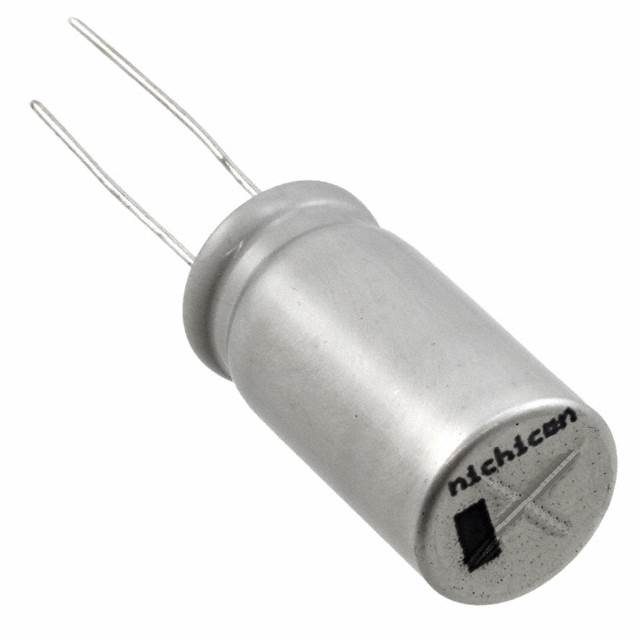

Nichicon UBX1H471MHL	20 %	960 mA	480 mA	Automotive	Polar	0.197 "	5 mm	-55 C	150 °C	470 µF	Through Hole	1000 Hrs	Can Radial	50 VDC	0.492 in	12.5 mm	26.5 mm		AEC-Q200				1.043 in

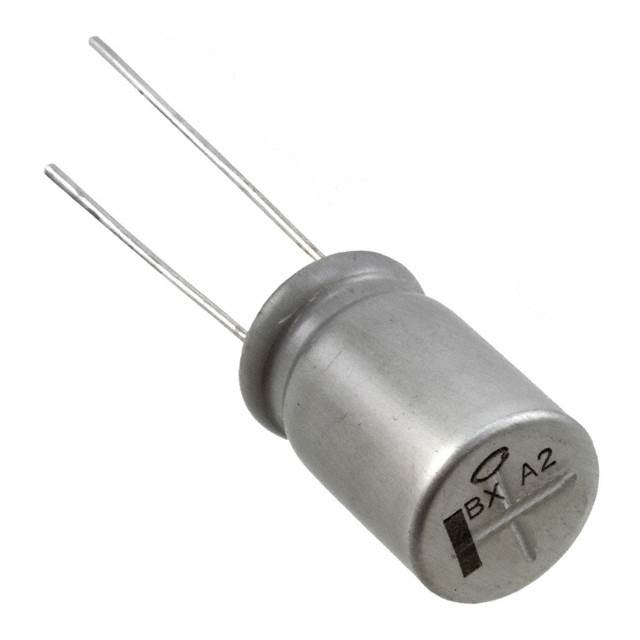

Nichicon UBX1C221MPL	20 %	300 mA	150 mA	Automotive	Polar	0.197 "	5 mm	-55 C	150 °C	220 µF	Through Hole	1000 Hrs	Can Radial	16 V	0.394 in	10 mm	0.689 in							17.5 mm
Nichicon UBX2A330MPL1TD	20 %	510 mA	255 mA	Automotive	Polar	0.197 "	5 mm	-55 C	150 °C	33 ÁF	Through Hole	1000 Hrs	Can Radial	100 V	0.394 in	10 mm	0.689 in							17.5 mm
