IKW50N65 Series

Manufacturer: INFINEON

Catalog

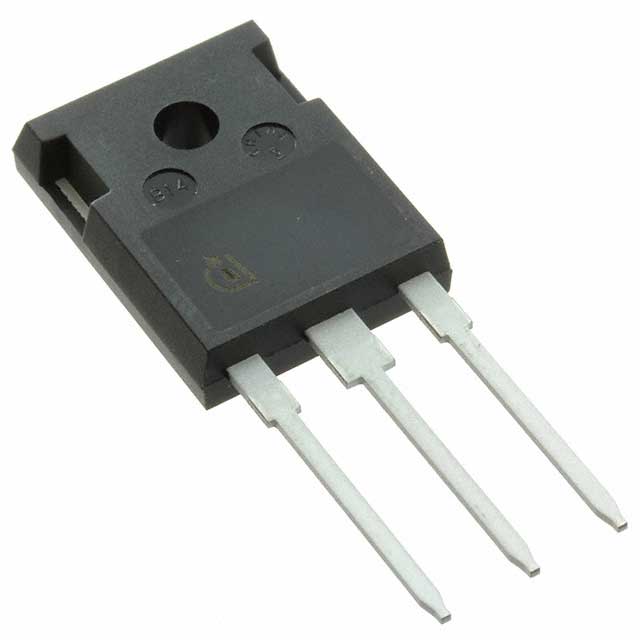

THE IKW50N65ET7 IS A 650 V, 50 A TRENCHSTOP™ IGBT7 DISCRETE WITH ANTI-PARALLEL DIODE IN TO-247 PACKAGE

Part	IGBT Type	Grade	Power - Max [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Switching Energy	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Pulsed (Icm)	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Test Condition	Package / Case	Qualification	Td (on/off) @ 25°C	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic	Gate Charge	Vce(on) (Max) @ Vge, Ic [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C
INFINEON IKW50N65ET7XKSA1	Trench Field Stop	Automotive	273 W	PG-TO247-3	50 A	1.2 mJ 850 µJ	175 °C	-40 °C	150 A	Through Hole	650 V	9 Ohm 15 V 50 A 400 V	TO-247-3	AEC-Q101	26 ns 350 ns	93 ns
INFINEON IKW50N65H5FKSA1			305 W	PG-TO247-3	80 A	180 µJ 520 µJ	175 °C	-40 °C	150 A	Through Hole	650 V	12 Ohm 15 V 25 A 400 V	TO-247-3		21 ns 180 ns	57 ns	2.1 V	120 nC
INFINEON IKW50N65ES5XKSA1	Trench		274 W	PG-TO247-3	80 A	1.23 mJ 550 µJ	175 °C	-40 °C	200 A	Through Hole	650 V	8.2 Ohm 15 V 50 A 400 V	TO-247-3			70 ns		120 nC	1.7 V	20 ns	127 ns
INFINEON IKW50N65F5FKSA1			305 W	PG-TO247-3	80 A	160 µJ 490 µJ	175 °C	-40 °C	150 A	Through Hole	650 V	12 Ohm 15 V 25 A 400 V	TO-247-3			52 ns	2.1 V	120 nC
INFINEON IKW50N65SS5XKSA1	Trench Field Stop		274 W	PG-TO247-3	80 A	320 µJ 550 µJ	175 °C	-40 °C	200 A	Through Hole	650 V	9 Ohm 15 V 50 A 400 V	TO-247-3					110 nC	1.7 V			20 ns 140 ns
INFINEON IKW50N65RH5XKSA1	Trench Field Stop		305 W	PG-TO247-3	80 A	180 µJ 230 µJ	175 °C	-40 °C	200 A	Through Hole	650 V	12 Ohm 15 V 25 A 400 V	TO-247-3				2.1 V	120 nC				22 ns 180 ns
