06-0513 Series

Catalog

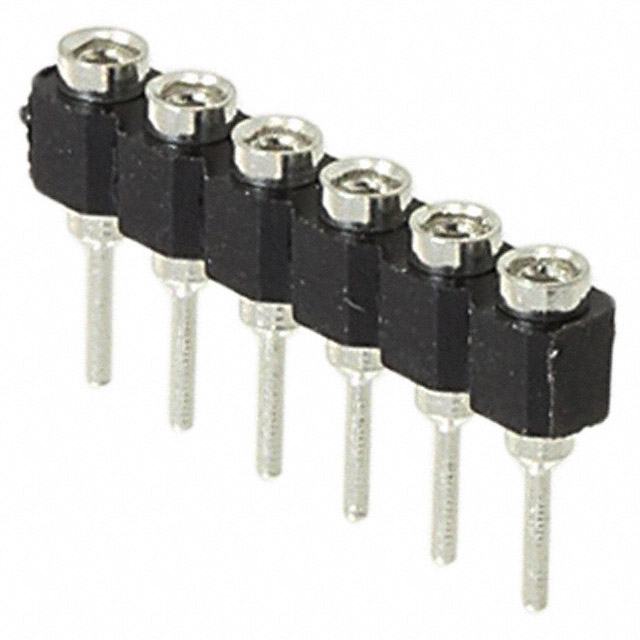

CONN SOCKET SIP 6POS GOLD

Part	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Material - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Type	Housing Material	Contact Material - Post [custom]	Contact Finish - Mating	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Aries Electronics 06-0513-11H	UL94 V-0	3 A	0.125 in	3.18 mm	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	Through Hole	SIP	Polyamide (PA46) Nylon 4/6 Glass Filled	Brass	Gold	0.1 in	2.54 mm	Gold	0.25 µm	10 µin
Aries Electronics 06-0513-11	UL94 V-0	3 A	0.125 in	3.18 mm	Beryllium Copper	Solder	0.1 "	2.54 mm	10 Áin	0.25 çm	Through Hole	SIP	Polyamide (PA46) Nylon 4/6 Glass Filled	Brass	Gold	0.1 in	2.54 mm	Gold	0.25 µm	10 µin
