M17PM-K Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

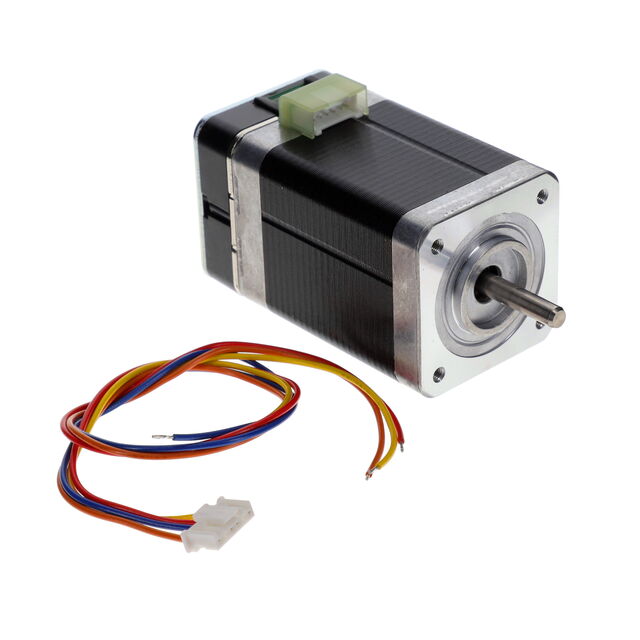

STEPPER MOTORS HYBRID MOTOR+BATTERYLESS ABSOLUTE ENCODER, 42X42X60MM, 1.8 DEGREE/STEP
| Part | Rotor Inertia [custom] | Weight | Weight | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Termination Style | Coil Type | Type | NEMA Frame Size | Voltage - Rated | Step Angle | Length - Shaft and Bearing | Length - Shaft and Bearing | Current Rating (Amps) | Coil Resistance | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Steps per Revolution | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 162 gcm² | 1.28 lb | 580 g | 1.654 in | 42 mm | 1.654 in | 42 mm | Connector | Bipolar | Hybrid | 17 | 24 VDC | 1.8 ° | 20.07 mm | 0.79 in | 2 A | 1 Ohms | 0.197 in | 5 mm | 200 | 1.22 in | 30.99 mm |
