AMED30 Series

Manufacturer: aimtec

Catalog

AC/DC DIN RAIL SUPPLY 2X48V 36W

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Standard Number	Efficiency	Voltage - Isolation	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	DC Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]

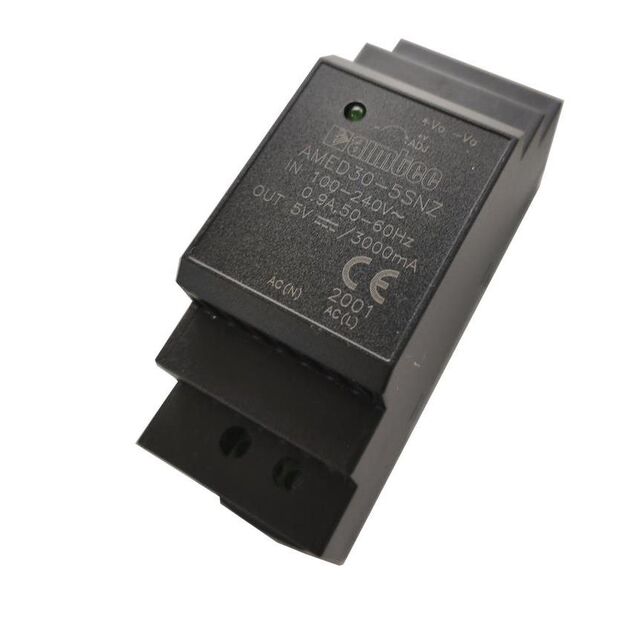

aimtec AMED30-48SNZ	750 mA	70 °C	-40 C	1	62368-1	90 %	4000 V	AC or DC	264 VAC	85 VAC	Adjustable Output Universal Input	35.1 mm	1.38 in	3.65 in	2.28 "	57.9 mm	92.7 mm	264 V	36 W	48 V	85 V	ITE (Commercial)
aimtec AMED30-24SNZ	1.5 A	70 °C	-40 C	1		89 %	4000 V	AC or DC	264 VAC	85 VAC	Universal Input		1.38 in	3.65 in	2.28 "	58 mm		370 V	36 W	24 V	120 V	ITE (Commercial)	92.7 mm	35 mm
aimtec AMED30-12SNZ	2 A	70 °C	-40 C	1		88 %	4000 V	AC or DC	264 VAC	85 VAC	Universal Input		1.38 in	3.65 in	2.28 "	58 mm		370 V	24 W	12 V	120 V	ITE (Commercial)	92.7 mm	35 mm
