IPP60R210 Series
Manufacturer: INFINEON
Beta
⌘K

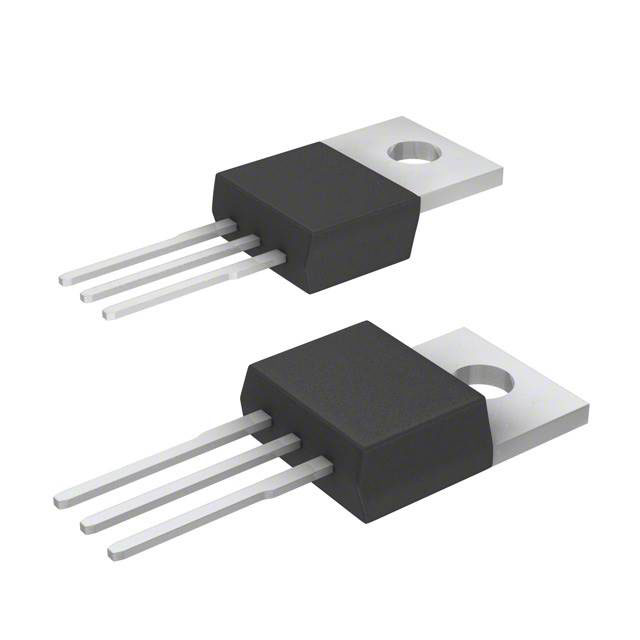

COOLMOS™ CFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TO-220 PACKAGE; 210 MOHM; FAST RECOVERY DIODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Drain to Source Voltage (Vdss) | Package / Case | Current - Continuous Drain (Id) @ 25°C | FET Type | Input Capacitance (Ciss) (Max) @ Vds | Mounting Type | Power Dissipation (Max) [Max] | Gate Charge (Qg) (Max) @ Vgs | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Vgs(th) (Max) @ Id | Vgs (Max) | Technology | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 150 °C | -55 °C | 600 V | TO-220-3 | 12 A | N-Channel | 1015 pF | Through Hole | 64 W | 23 nC | 10 V | PG-TO220-3 | 4.5 V | 20 V | MOSFET (Metal Oxide) | 210 mOhm |
