DF3D Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

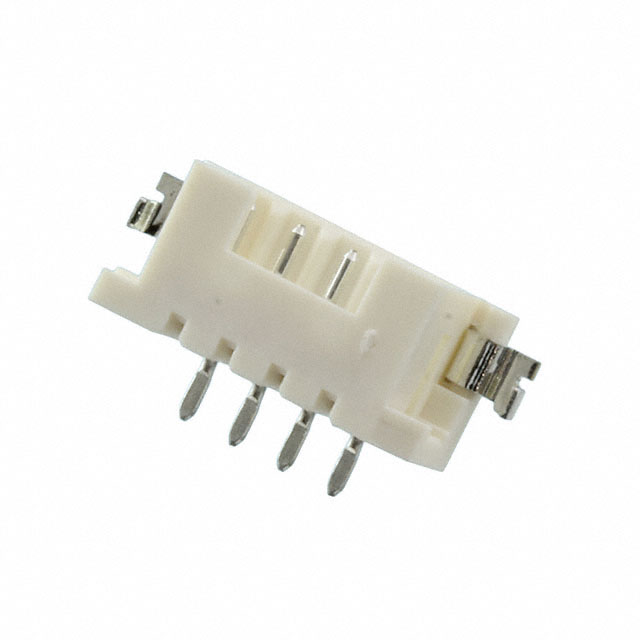

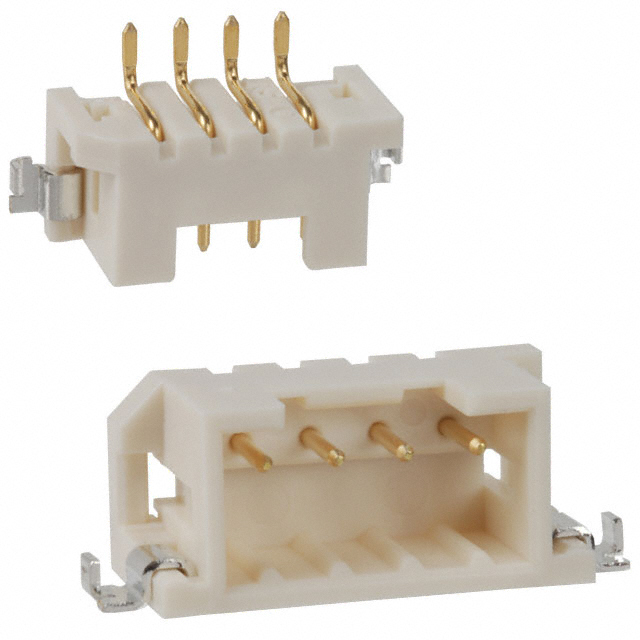

CONN HEADER SMD R/A 4POS 2MM
| Part | Connector Type | Style | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Termination | Insulation Material | Insulation Color | Current Rating (Amps) | Fastening Type | Number of Rows | Shrouding | Insulation Height | Insulation Height | Contact Finish - Mating | Number of Positions | Contact Material | Mounting Type | Contact Shape | Number of Positions Loaded | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Header | Board to Board Cable | Male Pin | -55 C | 105 ░C | UL94 V-0 | 0.079 " | 2 mm | Solder | Nylon Polyamide (PA) | Beige | 3 A | Push-Pull | 1 | Shrouded - 4 Wall | 5.6 mm | 0.22 in | Gold | 4 | Brass | Right Angle Surface Mount | Circular | All | Solder Retention | |
 Hirose Electric Co Ltd | Header | Board to Board Cable | Male Pin | -55 C | 105 ░C | UL94 V-0 | 0.079 " | 2 mm | Solder | Nylon Polyamide (PA) | Beige | 3 A | Push-Pull | 1 | Shrouded - 4 Wall | 5.6 mm | 0.22 in | Gold | Brass | Right Angle Surface Mount | Circular | All | Solder Retention | ||
 Hirose Electric Co Ltd | Header | Board to Board Cable | Male Pin | -55 C | 105 ░C | UL94 V-0 | 0.079 " | 2 mm | Solder | Nylon Polyamide (PA) | Beige | 3 A | Push-Pull | 1 | Shrouded - 4 Wall | 5.6 mm | 0.22 in | 2 | Brass | Right Angle Surface Mount | Circular | All | Solder Retention | Tin | |
 Hirose Electric Co Ltd | Header | Board to Board Cable | Male Pin | -55 C | 105 ░C | UL94 V-0 | 0.079 " | 2 mm | Solder | Nylon Polyamide (PA) | Beige | 3 A | Push-Pull | 1 | Shrouded - 4 Wall | 5.6 mm | 0.22 in | 4 | Brass | Right Angle Surface Mount | Circular | All | Solder Retention | Tin |
