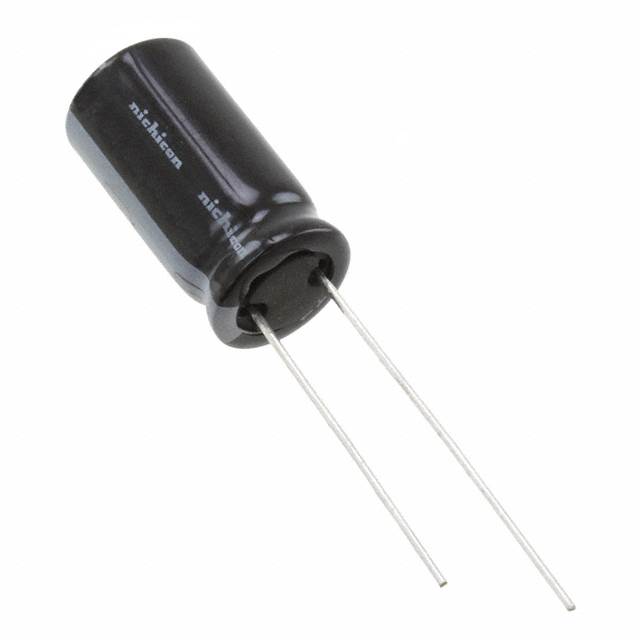

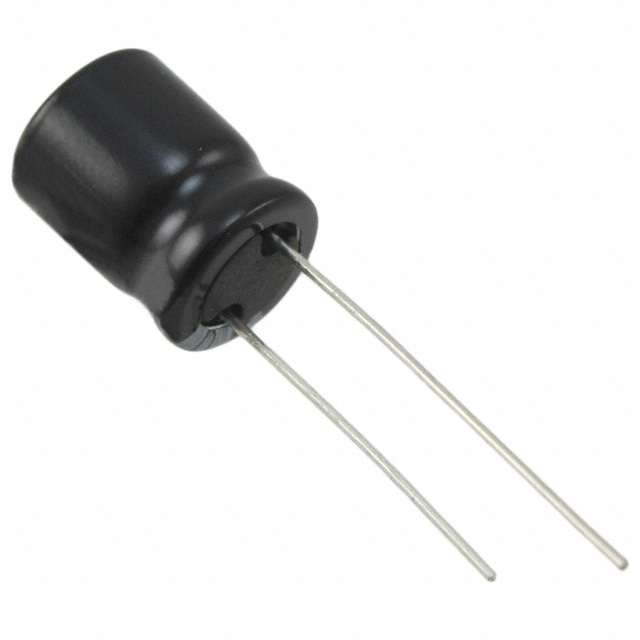

uhe Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, MINIATURE, 1000 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Part	Capacitance	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Tolerance	Lifetime @ Temp.	Package / Case	Impedance	Mounting Type	Lead Spacing	Lead Spacing	Polarization	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UHE1E102MHD6	1000 µF	1.425 A	-40 C	105 ░C	0.787 in	20 mm	25 VDC	20 %	10000 Hrs	Can Radial	35 mOhms	Through Hole	0.197 "	5 mm	Polar	General Purpose	0.492 in	12.5 mm
Nichicon UHE1A222MHD6	2200 µF	1.52 A	-40 C	105 ░C			10 V	20 %	8000 Hrs	Can Radial	35 mOhms	Through Hole	0.197 "	5 mm	Polar	General Purpose	0.492 in	12.5 mm	0.866 in	22 mm
Nichicon UHE1V222MHD6TN	2200 µF	2.944 A	-40 C	105 ░C	27 mm		35 V	20 %	10000 Hrs	Can Radial	19 mOhms	Through Hole	0.295 in	7.5 mm	Polar	General Purpose	0.709 in	18 mm			3.14 A	1.063 in
Nichicon UHE1C471MPD6	470 µF	648.75 mA	-40 C	105 ░C	0.492 in	12.5 mm	16 V	20 %	7000 Hrs	Can Radial	80 mOhms	Through Hole	0.197 "	5 mm	Polar	General Purpose	0.394 in	10 mm			865 mA
Nichicon UHE1A222MHD3	2200 µF	1.552 A	-40 C	105 ░C			10 V	20 %	8000 Hrs	Can Radial	42 mOhms	Through Hole	0.295 in	7.5 mm	Polar	General Purpose	0.63 in	16 mm			1.94 A		0.65 in	16.5 mm
Nichicon UHE1A102MPD	1000 µF	787.5 mA	-40 C	105 ░C	0.787 in	20 mm	10 V	20 %	6000 Hrs	Can Radial	69 mOhms	Through Hole	0.138 in	3.5 mm	Polar	General Purpose	0.315 in	8 mm			1.05 A
Nichicon UHE1E102MHD3TN	1000 µF	1.455 A	-40 C	105 ░C			25 VDC	20 %	10000 Hrs	Can Radial	42 mOhms	Through Hole	0.295 in	7.5 mm	Polar	General Purpose	0.63 in	16 mm			1.94 A		0.65 in	16.5 mm
