TPS Series
Manufacturer: KYOCERA AVX
Beta
⌘K

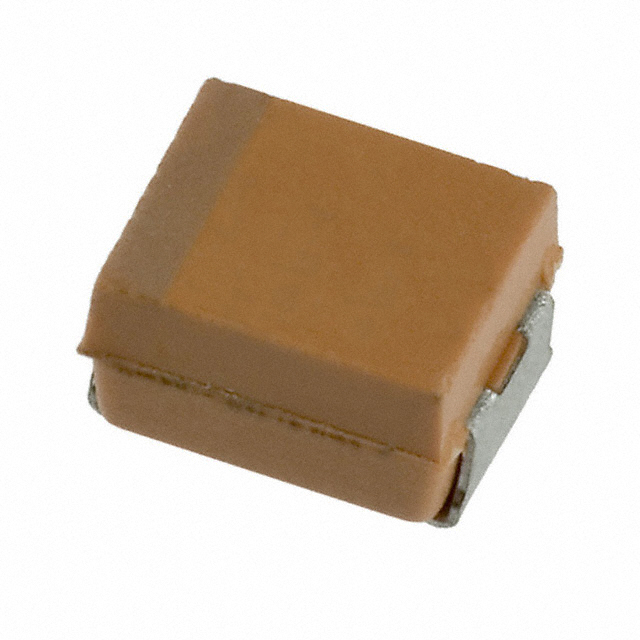

TANTALUM CAPACITORS - SOLID SMD 25V 3.3UF 10% 1206 E SR = 1000MOHM
| Part | Mounting Type | Type | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | ESR (Equivalent Series Resistance) | Manufacturer Size Code | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Features | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Surface Mount | Molded | 3.3 µF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 25 VDC | 1 Ohms | A | 1.8 mm | 0.071 in | General Purpose | 1206 (3216 Metric) | -55 C | 125 °C | 10 % | |||
 KYOCERA AVX | Surface Mount | Molded | 22 µF | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 6.3 VDC | 375 mOhm | B | General Purpose | 1210 1411 (3528 Metric) | -55 C | 125 °C | 20 % | 2.1 mm | 0.083 in | |||
 KYOCERA AVX | Surface Mount | Molded | 150 µF | 0.169 " | 0.287 " | 7.3 mm | 4.3 mm | 6.3 VDC | 125 mOhms | D | General Purpose | 2917 (7343 Metric) | -55 C | 125 °C | 10 % | 3.1 mm | 0.122 in | |||
KYOCERA AVX | Surface Mount | Molded | 330 µF | 0.169 " | 0.287 " | 7.3 mm | 4.3 mm | 10 V | 100 mOhms | D | General Purpose | 2917 (7343 Metric) | -55 C | 125 °C | 20 % | 3.1 mm | 0.122 in | |||
 KYOCERA AVX | Surface Mount | Molded | 100 µF | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 4 V | 250 mOhm | B | General Purpose | 1210 1411 (3528 Metric) | -55 C | 125 °C | 10 % | 2.1 mm | 0.083 in | |||
 KYOCERA AVX | Surface Mount | Molded | 22 µF | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 6.3 VDC | 600 mOhm | B | General Purpose | 1210 1411 (3528 Metric) | -55 C | 125 °C | 10 % | 2.1 mm | 0.083 in | |||
KYOCERA AVX | Surface Mount | Molded | 47 µF | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 10 V | 650 mOhm | B | General Purpose | 1210 1411 (3528 Metric) | -55 C | 125 °C | 10 % | 2.1 mm | 0.083 in | 2000 Hrs | ||
KYOCERA AVX | Surface Mount | Molded | 10 µF | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 16 V | 800 mOhm | B | General Purpose | 1210 1411 (3528 Metric) | -55 C | 125 °C | 10 % | 2.1 mm | 0.083 in | |||
 KYOCERA AVX | Surface Mount | Molded | 0.22 µF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 35 V | 6 Ohms | A | 1.8 mm | 0.071 in | General Purpose | 1206 (3216 Metric) | -55 C | 125 °C | 10 % | |||
 KYOCERA AVX | Surface Mount | Molded | 22 µF | 0.169 " | 0.287 " | 7.3 mm | 4.3 mm | 25 VDC | 200 mOhm | D | General Purpose | 2917 (7343 Metric) | -55 C | 125 °C | 20 % | 3.1 mm | 0.122 in |
