C0602 Series

Catalog

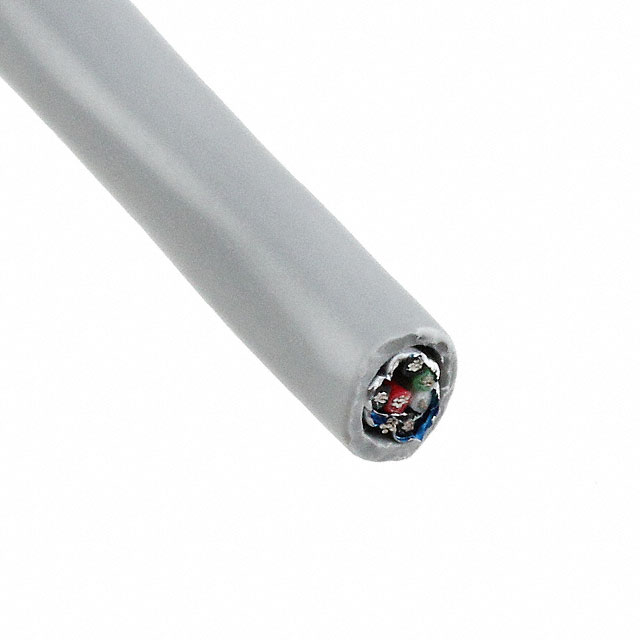

MULTI-PAIR 6COND 24AWG WHITE

Part	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Cable Type	Wire Gauge	Jacket (Insulation) Material	Features	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Shield Coverage	Shield Material	Length [x]	Length [x]
Prysmian Group C0602A.41.02	304.8 m	1000 ft	0.813 mm	0.032 in	ASTM B-33	6	White	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC) Riser	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG
Prysmian Group C0602A.18.10	152.4 m	500 ft	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer
Prysmian Group C0602A.50.10	1000 m	3281 '	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer	100 %	Flexfoil®
Prysmian Group C0602A.41.10	304.8 m	1000 ft	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer	100 %	Flexfoil®
Prysmian Group C0602A.18.10	152.4 m	500 ft	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer	100 %	Flexfoil®
Prysmian Group C0602A.41.02	304.8 m	1000 ft	0.813 mm	0.032 in	ASTM B-33	6	White	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC) Riser	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG		100 %	Flexfoil®
Prysmian Group C0602A.41.10	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer			100 ft	30.5 m
Prysmian Group C0602A.21.10	304.8 m	1000 ft	0.813 mm	0.032 in	ASTM B-33	6	Gray	80 °C	-20 ░C	Copper Annealed Tinned	Foil	5.72 mm	0.225 "	300 VDC	Multi-Pair	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Poly-Vinyl Chloride (PVC)	7	32 AWG	Computer	100 %	Flexfoil®
