BM4515 Series

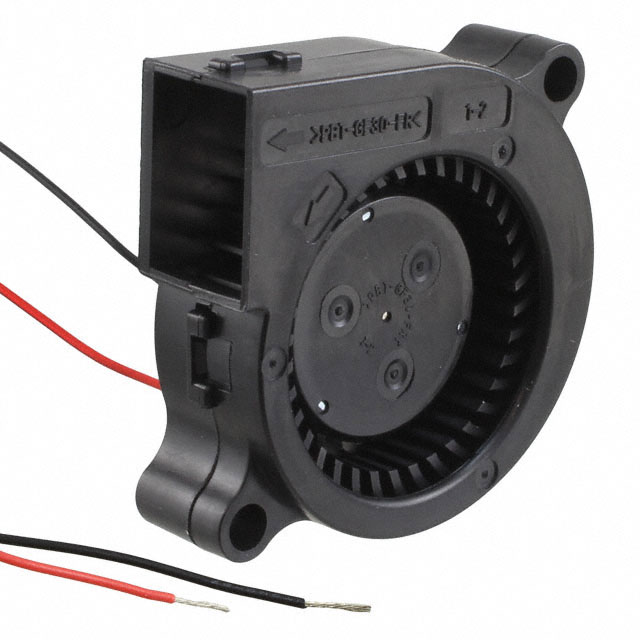

Blowers & Centrifugal Fans DC Blower, 45x45x15mm, 12VDC, 3CFM, 3-Lead Wires, Tachometer

Catalog

Blowers & Centrifugal Fans DC Blower, 45x45x15mm, 12VDC, 3CFM, 3-Lead Wires, Tachometer

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Static Pressure	Static Pressure	Fan Type	Width [y]	Weight [diameter]	Weight [diameter]	RPM	Termination	Bearing Type	Power (Watts)	Approval Agency	Noise	Air Flow	Air Flow	Features
NMB TECHNOLOGIES BM4515-04W-B50-L00	Plastic	190 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	60 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.803 in H2O	200 Pa	Blower	15 mm	0.055 lb	24.95 g	7500 RPM	2 Wire Leads	Ball	2.28 W	CE CSA UL VDE	43 dB	0.098 mł/min	3.5 CFM
NMB TECHNOLOGIES BM4515-04W-B49-L00	Plastic	140 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	70 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.642 in H2O	159.9 Pa	Blower	15 mm	0.055 lb	24.95 g	6500 RPM	3 Wire Leads	Ball	1.68 W	CE CSA UL VDE	39 dB(A)	0.084 mł/min	3 CFM	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B49-L50	Plastic	140 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	70 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.642 in H2O	159.9 Pa	Blower	15 mm	0.055 lb	24.95 g	6500 RPM	3 Wire Leads	Ball	1.68 W	CE CSA UL VDE	39 dB(A)	0.084 mł/min	3 CFM	Speed Sensor (Tach)
NMB TECHNOLOGIES BM4515-04W-B40-L00	Plastic	140 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	70 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.642 in H2O	159.9 Pa	Blower	15 mm	0.055 lb	24.95 g	6500 RPM	3 Wire Leads	Ball	1.68 W	CE CSA UL VDE	39 dB(A)	0.084 mł/min	3 CFM	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B30-L00	Plastic	0.09 A	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	70 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.401 in H2O	100 Pa	Blower	15 mm	0.055 lb	24.95 g	5500 RPM	3 Wire Leads	Ball	1.08 W	CE CSA UL VDE	35 dB	0.073 mł/min	2.6 CFM	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B59-L50	Plastic	190 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	60 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.803 in H2O	200 Pa	Blower	15 mm	0.055 lb	24.95 g	7500 RPM	3 Wire Leads	Ball	2.28 W	CE CSA UL VDE	43 dB	0.098 mł/min	3.5 CFM	Speed Sensor (Tach)
NMB TECHNOLOGIES BM4515-04W-B59-L00	Plastic	190 mA	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	60 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.803 in H2O	200 Pa	Blower	15 mm	0.055 lb	24.95 g	7500 RPM	3 Wire Leads	Ball	2.28 W	CE CSA UL VDE	43 dB	0.098 mł/min	3.5 CFM	Locked Rotor Sensor
NMB TECHNOLOGIES BM4515-04W-B39-L50	Plastic	0.09 A	Plastic	10.2 VDC	13.8 VDC	50000 Hrs	-10 °C	70 °C	Rectangular/Rounded	45 mm	44 mm	12 VDC	0.401 in H2O	100 Pa	Blower	15 mm	0.055 lb	24.95 g	5500 RPM	3 Wire Leads	Ball	1.08 W	CE CSA UL VDE	35 dB	0.073 mł/min	2.6 CFM	Speed Sensor (Tach)
