LI Series

Ferrite Beads Broadband,1Ln 0201,LI

Manufacturer: Laird Technologies EMI

Catalog

Ferrite Beads Broadband,1Ln 0201,LI

Catalog

Ferrite Beads Broadband,1Ln 0201,LI

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Current Rating (Max) [Max]	Size / Dimension [y]	Impedance @ Frequency	Filter Type	Height (Max) [z]	Height (Max) [z]	Package / Case	Package / Case	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [Max] [z]

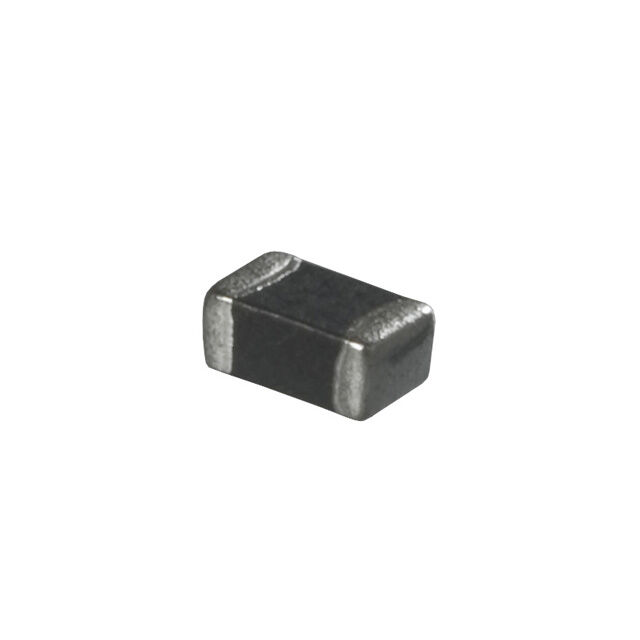

Laird Technologies EMI LI0603G121R-10	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	200 mOhm	Surface Mount	125 °C	-40 C	1	1 A	0.8 mm	120 Ohms	Power Signal Line	0.031 in	0.8 mm	1608 Metric	0603
Laird Technologies EMI LI0805G301R-10	0.049 "	0.079 in	2 mm	1.25 mm	200 mOhm	Surface Mount	125 °C	-40 C	1	1 A		300 Ohms	Power Signal Line		0.9 mm		0805	0.035 in

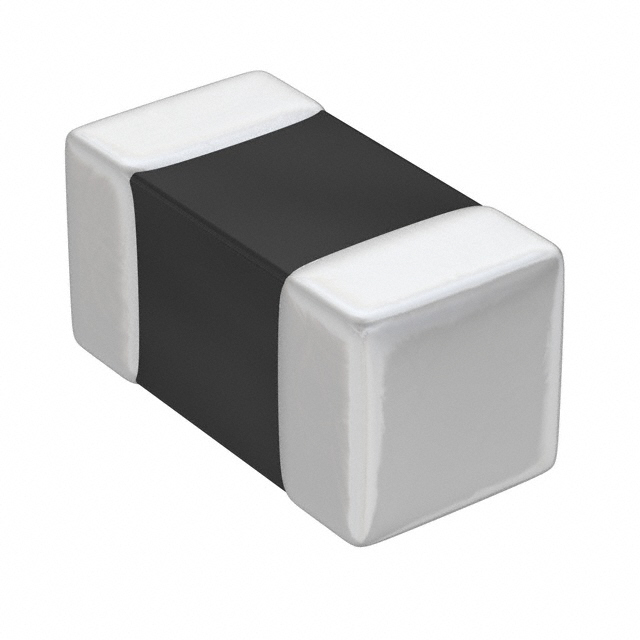

Laird Technologies EMI LI0201C121R-10	0.3 mm	0.6 mm	0.024 in	0.012 in	700 mOhm	Surface Mount	125 °C	-40 C	1	300 mA		120 Ohms	Power Signal Line	0.013 in	0.33 mm	0603 Metric	0201

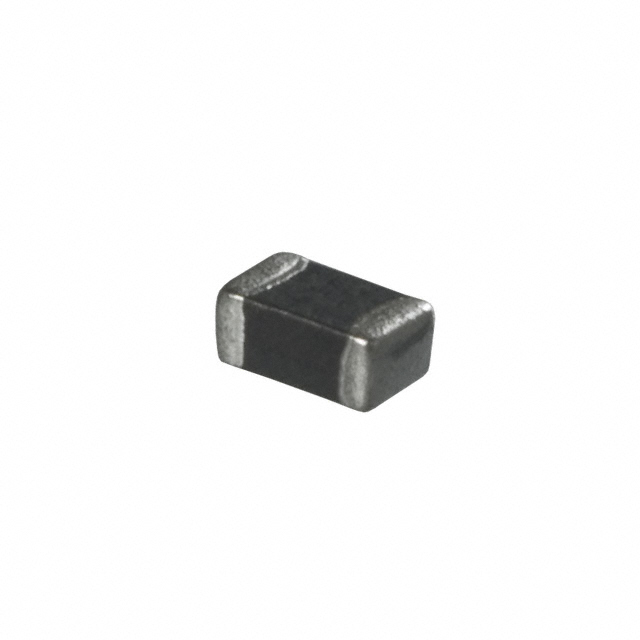

Laird Technologies EMI LI0402B301R-10	0.02 in	0.04 "	1.01 mm	0.5 mm	800 mOhm	Surface Mount	125 °C	-40 C	1	200 mA		300 Ohms	Power Signal Line				0402 (1005 Metric)		0.02 in	0.5 mm

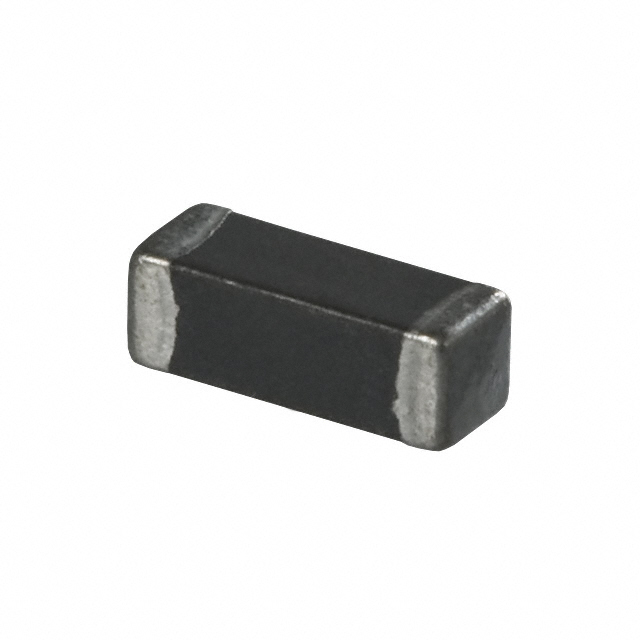

Laird Technologies EMI LI1806E800R-10	0.063 "	0.177 in	4.5 mm	1.6 mm	300 mOhm	Surface Mount	125 °C	-40 C	1	500 mA		80 Ohms	Power Signal Line		1.6 mm		1806 (4516 Metric)	0.063 in
