ADFS5758 Series
Manufacturer: Analog Devices
Beta
⌘K
ADFS5758 DAC EVALUATION BOARD ACE SOFTWARE IDE
| Part | Number of DAC's | Settling Time | DAC Type | Number of Bits | Data Interface | Supplied Contents | Utilized IC / Part | Architecture | INL/DNL (LSB) | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Differential Output | Reference Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Mounting Type | Supplier Device Package | Package / Case | Output Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

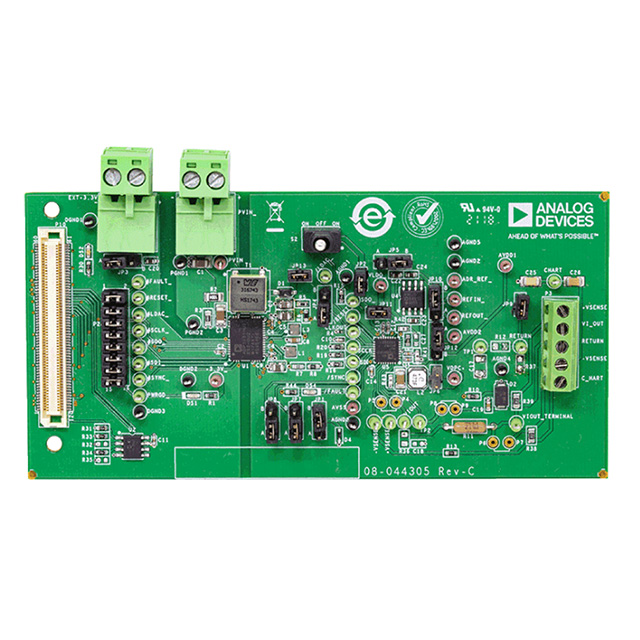

 Analog Devices | 1 | 15 µs | Current Voltage | 16 | Serial SPI | Board(s) | ADFS5758 | ||||||||||||||

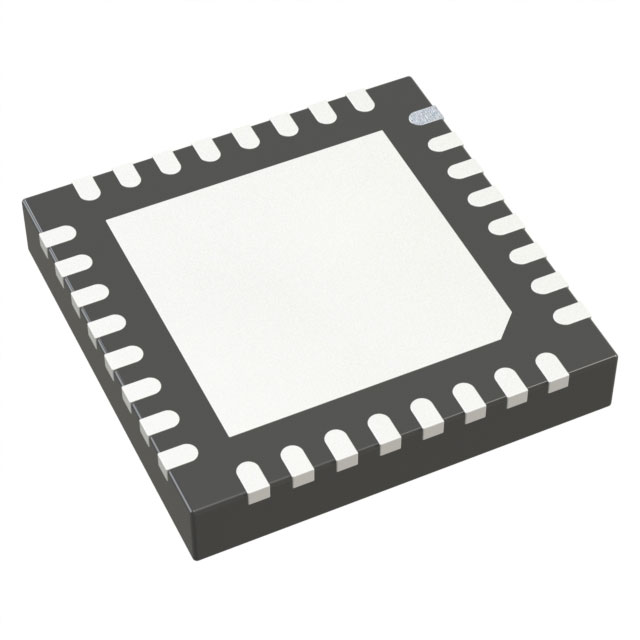

 Analog Devices | 15 µs 20 µs | 16 | SPI | R-2R | - ±1 | 1.71 V | 5.5 V | External Internal | 7 V | 33 V | Surface Mount | 32-LFCSP (5x5) | 32-VFQFN Exposed Pad CSP | Voltage or Current - Buffered | -40 °C | 105 ░C | |||||
 Analog Devices | 15 µs 20 µs | 16 | SPI | R-2R | - ±1 | 1.71 V | 5.5 V | External Internal | 7 V | 33 V | Surface Mount | 32-LFCSP (5x5) | 32-VFQFN Exposed Pad CSP | Voltage or Current - Buffered | -40 °C | 105 ░C |
