UDB Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Polarization	Voltage - Rated	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]
Nichicon UDB1H470KHM1CP

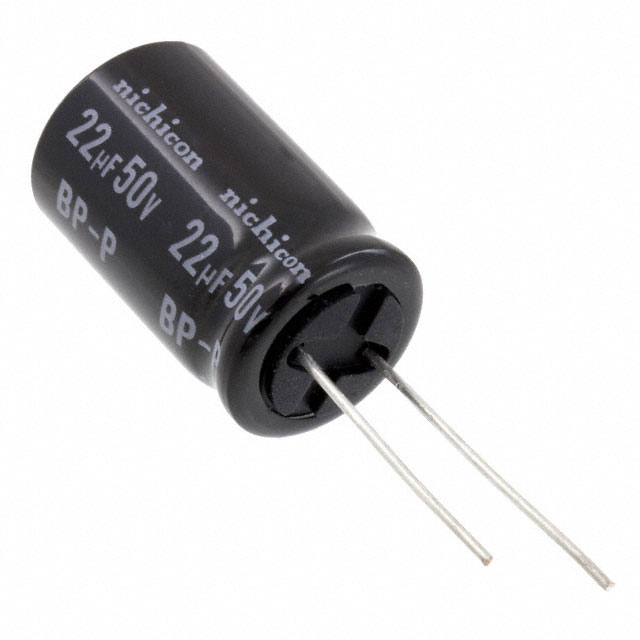

Nichicon UDB1H220MHM1TN	Bi-Polar	50 VDC	Can Radial	85 °C	-40 C	Audio	20 %	Through Hole	0.295 in	7.5 mm	740 mA	0.63 in	16 mm	22 µF	26 mm	1.024 in	1000 Hrs

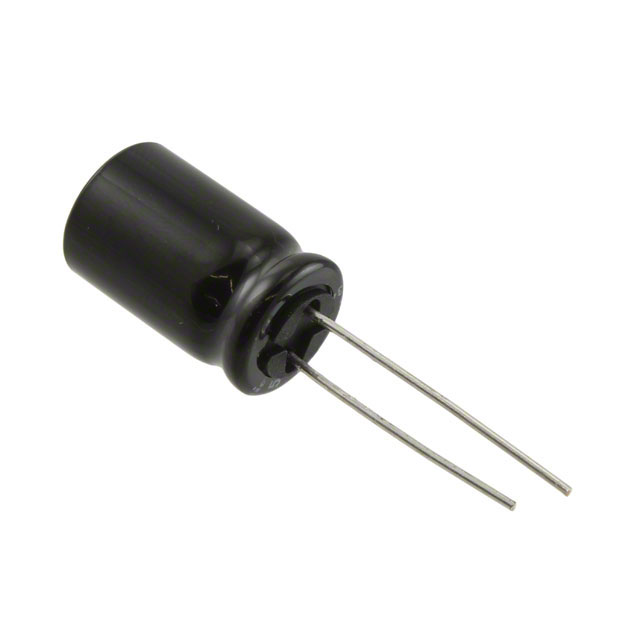

Nichicon UDB1H6R8MHM1TO	Bi-Polar	50 VDC	Can Radial	85 °C	-40 C	Audio	20 %	Through Hole	0.197 "	5 mm		0.492 in	12.5 mm	6.8 µF		0.827 "	1000 Hrs	21 mm	540 mA
Nichicon UDB1H100KHM1CP

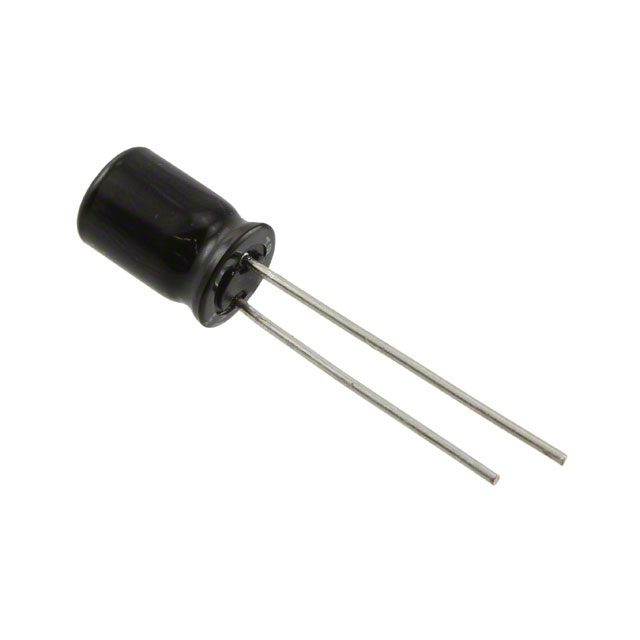

Nichicon UDB1H1R5MPM1TD	Bi-Polar	50 VDC	Can Radial	85 °C	-40 C	Audio	20 %	Through Hole	0.138 in	3.5 mm		0.315 in	8 mm	1500 nF			1000 Hrs	0.492 in	245 mA	12.5 mm
