IRG7PSH Series

Manufacturer: INFINEON

Catalog

IRG7PSH50 - DISCRETE IGBT WITH A

Part	Current - Collector Pulsed (Icm)	Test Condition	Package / Case	Switching Energy	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Gate Charge	Power - Max [Max]	Td (on/off) @ 25°C	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]	Reverse Recovery Time (trr)	Mounting Type	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]
INFINEON IRG7PSH50UDPBF	150 A	5 Ohm 15 V 50 A 600 V	TO-274AA	2.2 mJ 3.6 mJ	PG-TO274-3-903	2 V	1200 V	440 nC	462 W	35 ns 430 ns	Trench	150 °C	-55 °C	190 ns	Through Hole
INFINEON IRG7PSH50UDPBF	150 A	5 Ohm 15 V 50 A 600 V	TO-274AA	2.2 mJ 3.6 mJ	PG-TO274-3-903	2 V	1200 V	440 nC	462 W	35 ns 430 ns	Trench	150 °C	-55 °C	190 ns	Through Hole

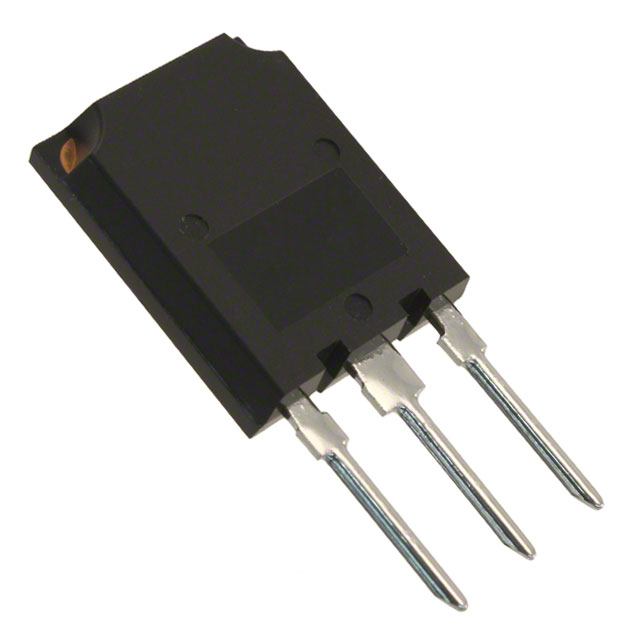

INFINEON IRG7PSH73K10PBF	225 A	4.7 Ohm 15 V 75 A 600 V	TO-274AA		SUPER-247™ (TO-274AA)	2.3 V	1200 V	360 nC	1150 W		Trench	175 °C	-55 °C		Through Hole	220 A	63 ns	267 ns
