UWG Series

Manufacturer: Nichicon

Catalog

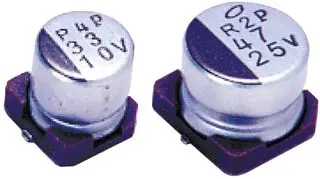

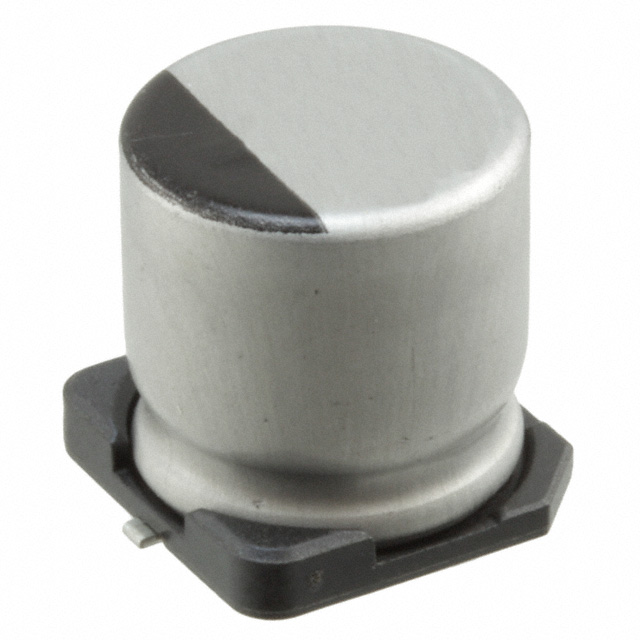

CAP ALUMINUM LYTIC 10UF 16V 20% (4 X 5.4MM) SMD 60MA 1000H 105°C T/R AUTOMOTIVE AEC-Q200

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Package / Case	Voltage - Rated	Lifetime @ Temp.	Tolerance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Ratings	Impedance
Nichicon UWG1C100MCL1GB	5.4 mm	0.213 in	-55 C	105 ░C	30 mA	Radial Can - SMD	16 V	1000 Hrs	20 %	4.3 mm	0.169 "	0.169 in	4.3 mm	Surface Mount	General Purpose	4 mm	0.157 in	10 µF	60 mA	AEC-Q200	3 Ohms
Nichicon UWG1H100MCL1GB	5.4 mm	0.213 in	-55 C	105 ░C	35 mA	Radial Can - SMD	50 VDC	1000 Hrs	20 %	6.6 mm	0.26 in	0.26 in	6.6 mm	Surface Mount	General Purpose	6.3 mm	0.248 "	10 µF	70 mA	AEC-Q200	2 Ohms
Nichicon UWG1V4R7MCL1GB	5.4 mm	0.213 in	-55 C	105 ░C	30 mA	Radial Can - SMD	35 V	1000 Hrs	20 %	4.3 mm	0.169 "	0.169 in	4.3 mm	Surface Mount	General Purpose	4 mm	0.157 in	4.7 µF	60 mA	AEC-Q200	3 Ohms
Nichicon UWG1C471MNL1GS	10.5 mm	0.413 "	-55 C	105 ░C	335 mA	Radial Can - SMD	16 V	1000 Hrs	20 %	10.3 mm	0.406 in	0.406 "	10.3 mm	Surface Mount	General Purpose	10 mm	0.394 in	470 µF		AEC-Q200	150 mOhms
Nichicon UWG1C681MNL1GS	10 mm	0.394 in	-55 C	105 ░C	335 mA	Radial Can - SMD	16 V	1000 Hrs	20 %	10.3 mm	0.406 in	0.406 "	10.3 mm	Surface Mount	General Purpose	10 mm	0.394 in	680 µF		AEC-Q200	150 mOhms
Nichicon UWG1C220MCL1GB	5.4 mm	0.213 in	-55 C	105 ░C	47.5 mA	Radial Can - SMD	16 V	1000 Hrs	20 %	0.209 in 5.3 mm			0.209 in 5.3 mm	Surface Mount	General Purpose	5 mm	0.197 in	22 µF	95 mA	AEC-Q200	1.8 Ohms
