BXEP-30 Series

Manufacturer: BRIDGELUX

Catalog

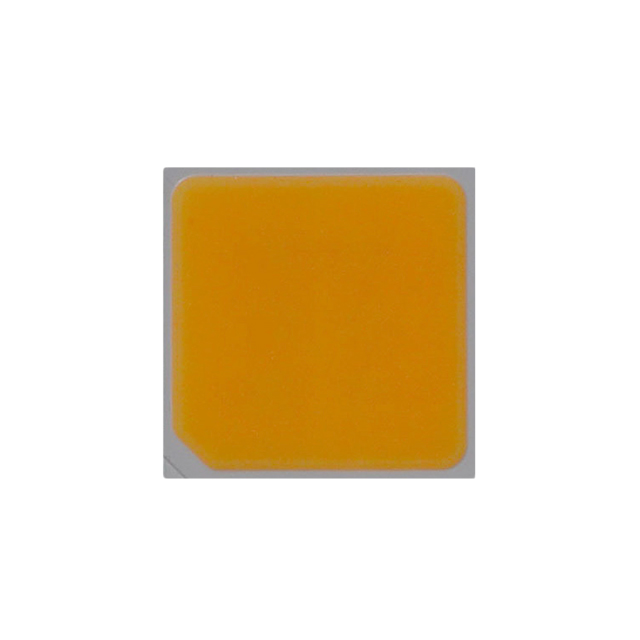

LED 5050 WARM WHT 3000K SMD

Part	Thermal Resistance of Package	Mounting Type	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Lumens/Watt @ Current - Test	Package / Case	Flux @ 85°C, Current - Test	CCT (K)	Color	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test
BRIDGELUX BXEP-30E-163-18A-00-00-0	3.3 °C/W	Surface Mount	5050	0.031 in	0.8 mm	120 lm/W	2020 (5050 Metric)	349 lm	3000 K	Warm White	80	18.1 V	116 °	240 mA	0.197 in	0.197 "	5 mm	5 mm
BRIDGELUX BXEP-30E-435-09A-00-00-0	1.9 °C/W	Surface Mount	5050	0.031 in	0.8 mm	116 lm/W	2020 (5050 Metric)	522 lm	3000 K	Warm White	80	9 V	116 °	800 mA	0.197 in	0.197 "	5 mm	5 mm	500 mA
BRIDGELUX BXEP-30E-233-09A-00-00-0	3.3 °C/W	Surface Mount	5050	0.031 in	0.8 mm	120 lm/W	2020 (5050 Metric)	349 lm	3000 K	Warm White	80	9 V	116 °	480 mA	0.197 in	0.197 "	5 mm	5 mm	320 mA
BRIDGELUX BXEP-30E-1C5-36A-00-00-0	19 °C/W	Surface Mount	5050	0.031 in	0.8 mm	116 lm/W	2020 (5050 Metric)	522 lm	3000 K	Warm White	80	36.1 V	116 °	200 mA	0.197 in	0.197 "	5 mm	5 mm	125 mA
