TPP 15 Series

Catalog

SWITCHING POWER SUPPLIES 13.2W 3.3V 4A 1X2.6 OPEN MED PS

Part	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Approval Agency	Efficiency	Applications	Mounting Type	Features	Number of Outputs	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Type	Voltage - Output 1	Load Regulation	Voltage - Output 1 [custom]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Traco Power TPP 15-103A-J	4 A	16.3 mm	2.61 "	1 "	0.64 in	66.3 mm	25.4 mm	-40 °C	85 °C	13 W	CB CE cURus	84 %	ITE (Commercial) Medical	Chassis Mount	Adjustable Output Universal Input	1	4000 V	85 VAC 120 VDC	264 VAC 370 VDC	Open Frame	3.3 V
Traco Power TPP 15-136-D								-40 °C	85 °C	15 W	CB CE cURus	88 %	Household Appliances ITE (Commercial) Medical	Through Hole	Adjustable Output Universal Input	1		85 VAC 120 VDC	264 VAC 370 VDC	Enclosed		0.5 %	36 V	5-DIP Module

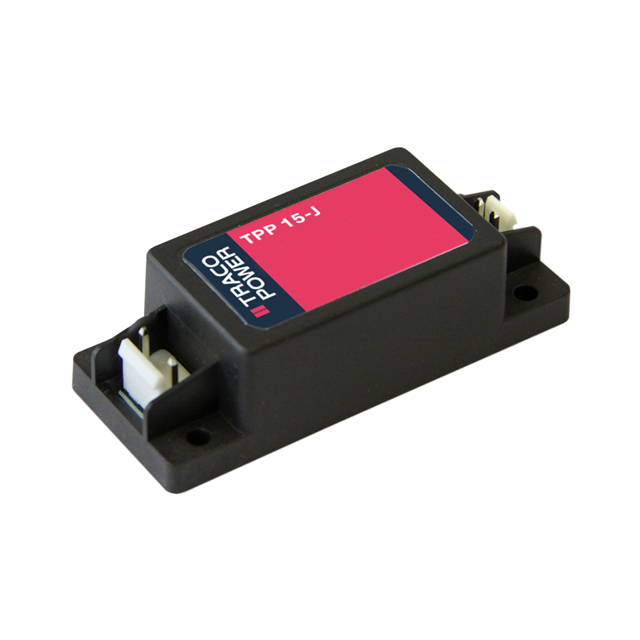

Traco Power TPP 15-109-J	1.67 A	20.9 mm	2.82 in	1.14 "	0.82 "	71.6 mm	28.9 mm	-40 °C	85 °C	15 W	CB CE cURus	86 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	Adjustable Output Universal Input	1	4000 V	85 VAC 120 VDC	264 VAC 370 VDC	Enclosed	9 V
Traco Power TPP 15-124A-J	625 mA	16.3 mm	2.61 "	1 "	0.64 in	66.3 mm	25.4 mm	-40 °C	85 °C	15 W	CB CE cURus	88 %	ITE (Commercial) Medical	Chassis Mount	Adjustable Output Universal Input	1	4000 V	85 VAC 120 VDC	264 VAC 370 VDC	Open Frame	24 V

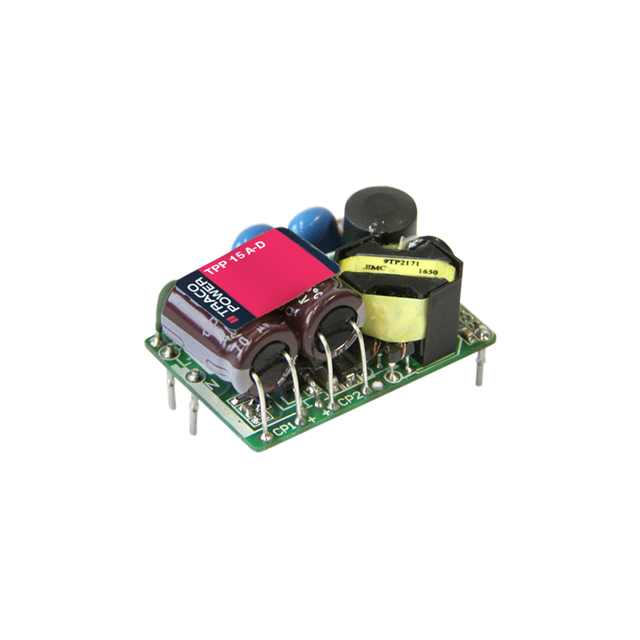

Traco Power TPP 15-136A-D		0.82 in				1.5 in	25.4 mm	-40 °C	85 °C	15 W	CB CE cURus	88 %	Household Appliances ITE (Commercial) Medical	Through Hole	Adjustable Output Universal Input	1		85 VAC 120 VDC	264 VAC 370 VDC	Open Frame		0.5 %	36 V	5-DIP Module	20.8 mm	38.1 mm	25.4 mm
