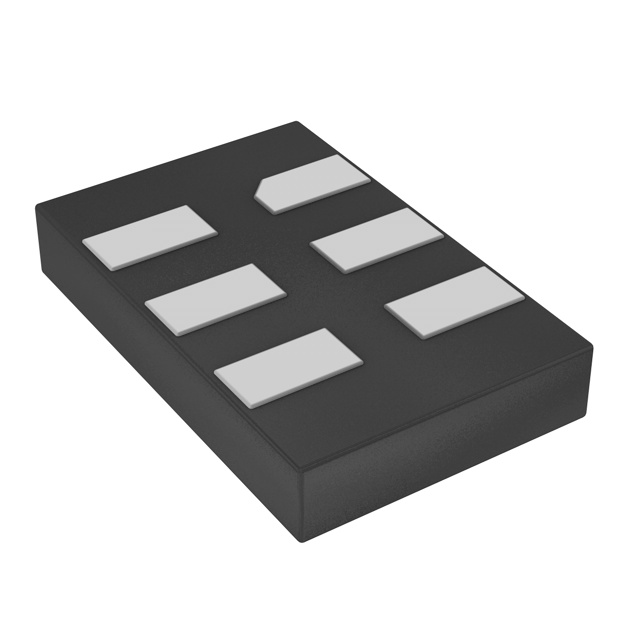

DSA1105 Series

Automotive Low jitter MEMS Oscillator

Catalog

Automotive Low jitter MEMS Oscillator

Part	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability	Type	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Function	Ratings	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Base Resonator	Current - Supply (Disable) (Max) [Max]
Microchip Technology DSA1105CI1-025.0000TVAO	35 mA	85 °C	-40 °C	25 MHz	3.63 V	2.25 V	50 ppm	XO (Standard)	CMOS	0.035 "	0.9 mm	Standby (Power Down)	AEC-Q100	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	6-VDFN	MEMS	95 µA
Microchip Technology DSA1105BI1-025.0000TVAO	35 mA	85 °C	-40 °C	25 MHz	3.63 V	2.25 V	50 ppm	XO (Standard)	CMOS	0.035 "	0.9 mm	Standby (Power Down)	AEC-Q100	Surface Mount	5 mm	3.2 mm	0.197 in	0.126 "	6-VDFN	MEMS	95 µA
Microchip Technology DSA1105CI1-025.0000VAO	35 mA	85 °C	-40 °C	25 MHz	3.63 V	2.25 V	50 ppm	XO (Standard)	CMOS	0.035 "	0.9 mm	Standby (Power Down)	AEC-Q100	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	6-VDFN	MEMS	95 µA
Microchip Technology DSA1105BI1-025.0000VAO	35 mA	85 °C	-40 °C	25 MHz	3.63 V	2.25 V	50 ppm	XO (Standard)	CMOS	0.035 "	0.9 mm	Standby (Power Down)	AEC-Q100	Surface Mount	5 mm	3.2 mm	0.197 in	0.126 "	6-VDFN	MEMS	95 µA

Catalog

Automotive Low jitter MEMS Oscillator

Key Features

• * Lowest output drive strength for reduced EMI

• * AEC-Q100 qualified

• * Low RMS Phase Jitter: <1 ps (typ.)

• * High Stability: ±20 ppm, ±25 ppm , ±50 ppm

• * Automotive:Grade 1 -40°C to 125°C

• * Automotive Grade 2 : -40°C to 105°C

• * Automotive Grade 3: -40°C to 85°C

• * High Supply Noise Rejection: -50dBc

• * Wide Freq. Range: 2.3 to 170MHz

• * 2.5mm x 2.0mm, 3.2mm x 2.5mm and 5.0mm x 3.2mm

• * Qualified to MIL-STD-883

• * 20x better MTF than quartz oscillators

• * Low Current Consumption

• * Supply Range of 2.25V to 3.6V

• * Standby & Output Enable Function

• * Lead Free & RoHS Compliant

• * Short Production Lead Time: 4-6 Weeks

Description

The DSC1105 & DSC1125 series of low jitter automotive oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications. DSC1105 and DSA1125 are programmed with lowest output drive strength for reduced EMI. DSC1105 has a standby feature allowing it to completely power-down when EN pin is pulled low; whereas for DSC1125, only the outputs are disabled when EN is low. Both oscillators are available in industry standard packages, including the smallest 2.5mm x 2.0mm, and are "drop-in" replacements for standard 4-pin CMOS quartz crystal oscillators. Create an application specific part and order samples with the [CLOCKWORKS CONFIGURATOR](https://clockworks.microchip.com/microchip/CWHome/DSA11) tool.
